1F5G - FAST RECOVERY GLASS PASSIVATED RECTIFIER

HITANO

Key Features

High reliability.
Low leakage.
Low forward voltage drop.
High current capability.
High switching capability.
Glass passivated junction R-1.

1F5G fast recovery glass passivated rectifier by HITANO - Datasheet Preview

Datasheet Details

Part number	1F5G
Manufacturer	HITANO
File Size	871.16 KB
Description	FAST RECOVERY GLASS PASSIVATED RECTIFIER
Datasheet	1F5G Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
1F5G	GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER	Pan Jit International Inc.
1F5G	FAST RECOVERY GLASS PASSIVATED RECTIFIER	Rectron Semiconductor
1F5G	Fast Recovery Glass Passivated Rectifiers	SEMTECH
1F5G	FAST RECOVERY GLASS PASSIVATED RECTIFIERS	HY
1F5G	Fast Recovery Rectifiers	Eris

Other Datasheets by HITANO

Part Number	Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

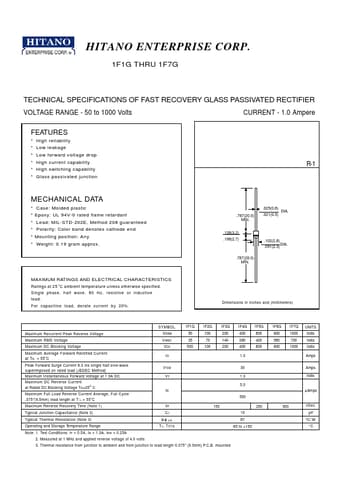

HITANO ENTERPRISE CORP. 1F1G THRU 1F7G TECHNICAL SPECIFICATIONS OF FAST RECOVERY GLASS PASSIVATED RECTIFIER VOLTAGE RANGE - 50 to 1000 Volts CURRENT - 1.0 Ampere FEATURES * High reliability * Low leakage * Low forward voltage drop * High current capability * High switching capability * Glass passivated junction R-1 MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rated flame retardant * Lead: MIL-STD-202E, Method 208 guaranteed * Polarity: Color band denotes cathode end * Mounting position: Any * Weight: 0.19 gram approx. MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. .787(20.0) MIN. .025(0.6) DIA. .021(0.
