HM9715 Datasheet - H&M semi

HM9715 2A High-Side Power Switch

The HM9715 is a cost-effective, low-voltage, single N-MOSFET high-side Power Switch IC for USB application. Low switch-on resistance and low supply current are realized in this IC. The HM9715 integrates an over-current protection circuit, a short fold back circuit, a thermal shutdown circuit and an .

HM9715 Features

* 58mΩ (typ.) N-MOSFET Switch

* Operating Range: 2.5V to 5.5V

* Reverse Blocking Current

* Under Voltage Lockout (Power On Reset)

* Deglitched Fault Report (FLG)

* Thermal Protection

* Over Current Protection with Fold-back 2022/08/29 1 Pin Assignment Pin Name VOUT GND

HM9715 Datasheet (1.60 MB)

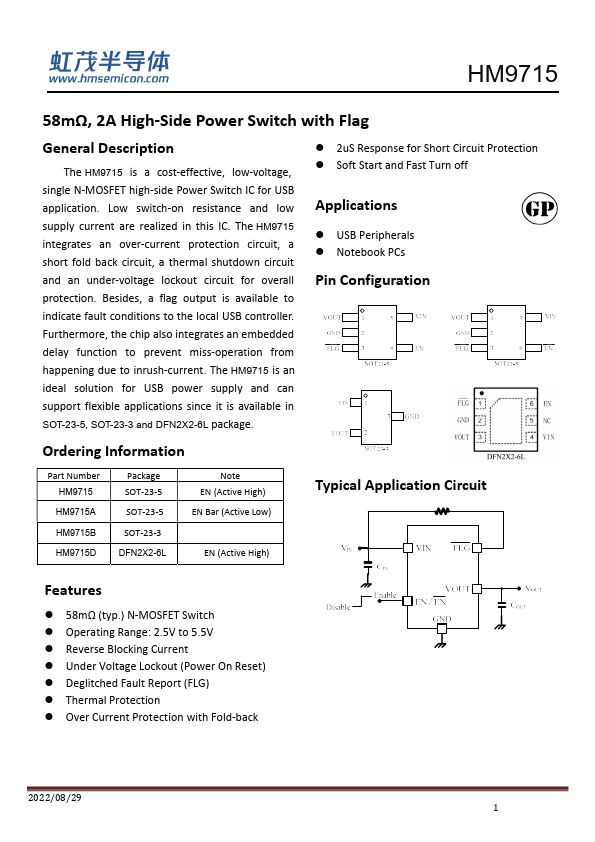

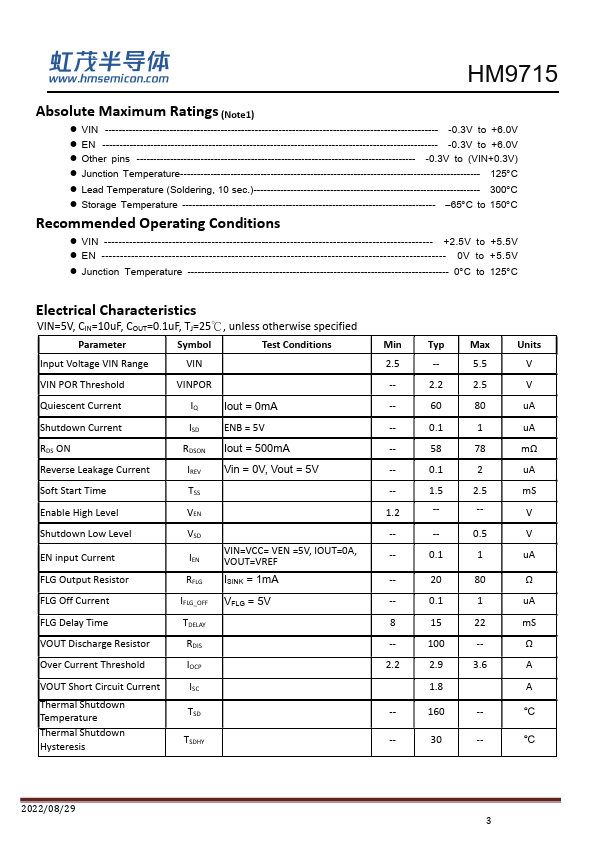

HM9715 Datasheet Preview — Preview of HM9715 PDF

Datasheet Details

Part number:

HM9715

Manufacturer:

H&M semi

File Size:

1.60 MB

Description:

2a high-side power switch.
