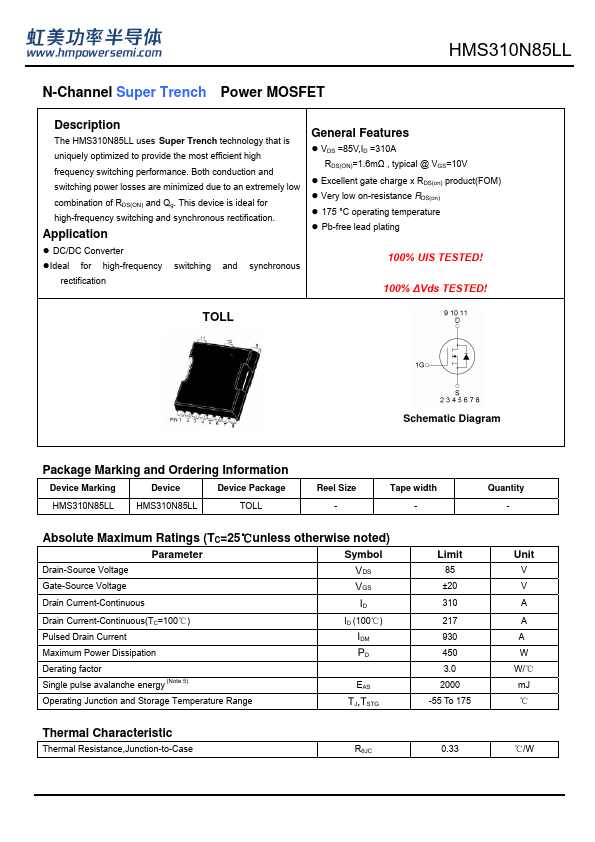

HMS310N85LL N-Channel Super Trench Power MOSFET

The HMS310N85LL uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switchin.

HMS310N85LL Features

* VDS =85V,ID =310A RDS(ON)=1.6mΩ , typical @ VGS=10V

* Excellent gate charge x RDS(on) product(FOM)

* Very low on-resistance RDS(on)

* 175 °C operating temperature

* Pb-free lead plating 100% UIS TESTED! 100% ∆Vds TESTED! TOLL Schematic Diagram Package Marking and Ordering In
