RGF1M - SURFACE MOUNT GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER

RGF1M Description

RGF1A THRU RGF1M SURFACE MOUNT GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER Reverse Voltage - 50 to 1000 Volts * E DO-214BA MODIFIED J-BEND .

RGF1M Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0

RGF1M Applications

* High temperature metallurgically bonded construction
* Glass passivated cavity-free junction
* Capable of meeting environmental standards of MIL-S-19500
* Built-in strain relief
* Easy pick and place
* Fast switching for high efficiency
* Hig

📥 Download Datasheet

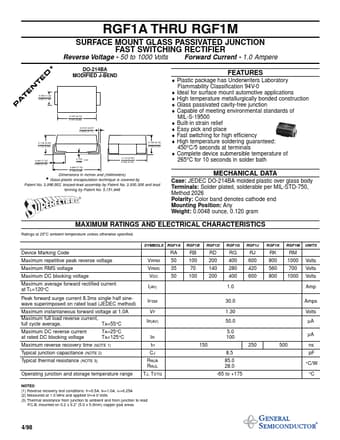

Preview of RGF1M PDF
datasheet Preview Page 2

Datasheet Details

Part number
RGF1M
Manufacturer
General Semiconductor
File Size
89.97 KB
Datasheet
RGF1M_GeneralSemiconductor.pdf
Description
SURFACE MOUNT GLASS PASSIVATED JUNCTION FAST SWITCHING RECTIFIER
