HST-0032SXCR - 10/100 BASE-TX TRANSFORMER

Download the HST-0032SXCR datasheet PDF. This datasheet also covers the HST-0041SAR-GROUP variant, as both devices belong to the same 10/100 base-tx transformer family and are provided as variant models within a single manufacturer datasheet.

Features

  • Designed to meet IEEE 802.3 requirements.
  • Primary inductance(Lp)350uH min. @ 100KHz,0.1Vrms,8mA.
  • LL:0.35uH Max @100KHz, 0.1V.
  • Cww:30pF Max@100KHz, 0.1V.
  • Primary DCR:0.9ΩMax;Secondary DCR:1.2ΩMax.
  • Storeage temperature -25℃ to +125℃.
  • RoHS compliance Electrical Specification@25℃ Part NO Insertion Turns Ratio PoE or Operating Non PoE Temperature Ioss (dB Max) Return Ioss (dB Min) Differential to Common Mode Rejection (dB Min) Crosstalk (dB Min) MHz.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HST-0041SAR-GROUP-TEK.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number HST-0032SXCR
Manufacturer GROUP-TEK
File Size 142.55 KB
Description 10/100 BASE-TX TRANSFORMER
Datasheet download datasheet HST-0032SXCR Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HST-0041SAR 10/100Base-T TRANSFORMER ETC
HST-1025D 10/100BASE-TX TRANSFORMER MODULES ETC
HST-1026D 10/100BASE-TX TRANSFORMER MODULES ETC
HST-1027D 10/100BASE-TX TRANSFORMER MODULES ETC
HST-1027S 10/100BASE-TX TRANSFORMER MODULES ETC

Other Datasheets by GROUP-TEK

Part Number Description
HST-0031SCR 10/100 BASE-TX TRANSFORMER
HST-0041S 10/100BASE TRANSFORMER
HST-0041SAR 10/100 BASE-TX TRANSFORMER
HST-0041SXAR 10/100 BASE-TX TRANSFORMER
HST-0042S 10/100BASE TRANSFORMER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

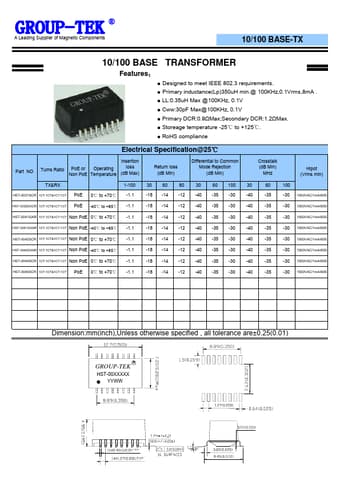

® A Leading Supplier of Magnetic Components 10/100 BASE-TX 10/100 BASE TRANSFORMER Features： ● Designed to meet IEEE 802.3 requirements. ● Primary inductance(Lp)350uH min.@ 100KHz,0.1Vrms,8mA . ● LL:0.35uH Max @100KHz, 0.1V ● Cww:30pF Max@100KHz, 0.1V ● Primary DCR:0.9ΩMax;Secondary DCR:1.2ΩMax. ● Storeage temperature -25℃ to +125℃. ● RoHS compliance Electrical Specification@25℃ Part NO Insertion Turns Ratio PoE or Operating Non PoE Temperature Ioss (dB Max) Return Ioss (dB Min) Differential to Common Mode Rejection (dB Min) Crosstalk (dB Min) MHz Hipot (Vrms min) TX&RX 1-100 30 60 80 30 60 100 30 60 100 HST-0031SCR 1CT:1CT&1CT:1CT PoE 0℃ to +70℃ -1.1 -18 -14 -12 -40 -35 -30 -40 -35 -30 1500VAC/1mA/60S HST-0032SXCR 1CT:1CT&1CT:1CT PoE -40℃ to +85℃ -1.
