FS210 - 2-PHASE DC MOTOR DRIVER

General Description

The FS210, a 1-chip composed of hall sensor and output coil drivers, applied to a 2-phase DC motor.

The high sensitivity of Hall effect sensor is suitable for motors from mini-type CPU coolers to blowers and DC fans.

Key Features

  • £» £» £» £» £» 1 chip hall sensor/drivers Wide operating voltage range: 2.8V~20V Output sink current up to 0.45A Very low switching noise. Package : TO-92SP-4 TO-92SP-4.

📥 Download Datasheet

Datasheet Details

Part number FS210
Manufacturer Feeling Technology
File Size 139.60 KB
Description 2-PHASE DC MOTOR DRIVER
Datasheet download datasheet FS210 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FS210 Programmable Incremental Encoder TT
FS2117 Efficient DC-DC Synchronous Rectifier Boost Converter Fansea
FS200R06KE3 IGBT-Module eupec
FS200R06KE3 IGBT Infineon
FS200R06KL4 IGBT-Module eupec

Other Datasheets by Feeling Technology

Part Number Description
FS211 2 PHASE DC MOTOR DRIVER
FS211F 2 PHASE DC MOTOR DRIVER
FS200 2-PHASE DC MOTOR DRIVER
FS209 2-PHASE DC MOTOR DRIVER
FS220 2 Phase High Voltage DC Motor Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

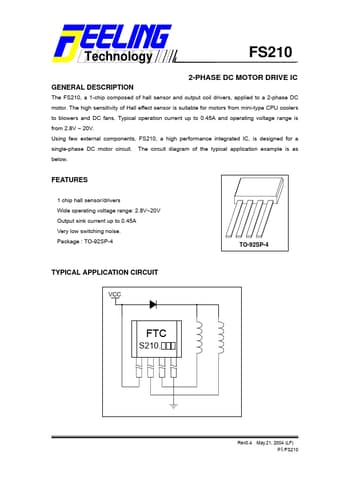

Technology GENERAL DESCRIPTION FS210 2-PHASE DC MOTOR DRIVE IC The FS210, a 1-chip composed of hall sensor and output coil drivers, applied to a 2-phase DC motor. The high sensitivity of Hall effect sensor is suitable for motors from mini-type CPU coolers to blowers and DC fans. Typical operation current up to 0.45A and operating voltage range is from 2.8V ~ 20V. Using few external components, FS210, a high performance integrated IC, is designed for a single-phase DC motor circuit. below. The circuit diagram of the typical application example is as FEATURES £» £» £» £» £» 1 chip hall sensor/drivers Wide operating voltage range: 2.8V~20V Output sink current up to 0.45A Very low switching noise. Package : TO-92SP-4 TO-92SP-4 TYPICAL APPLICATION CIRCUIT VCC FTC S210. Rev0.4 May.
