HGTG20N60A4D - N-Channel IGBT

Features

  • of MOSFETs and bipolar transistors. This device has the high input impedance of a MOSFET and the low on-state conduction loss of a bipolar transistor. The much lower on-state voltage drop varies only moderately between 25oC and 150oC. The IGBT used is the development type TA49339. The diode used in anti-parallel is the development type TA49372. This IGBT is ideal for many high voltage switching.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HGTG20N60A4D N-Channel IGBT ON Semiconductor
HGTG20N60A4 N-Channel IGBT Intersil Corporation
HGTG20N60A4 IGBT ON Semiconductor
HGTG20N60B3 N-Channel IGBT Intersil Corporation
HGTG20N60B3 N-Channel IGBT ON Semiconductor

Other Datasheets by Fairchild (onsemi)

Part Number Description
HGTG20N60A4 N-Channel IGBT
HGTG20N60B3 N-Channel IGBT
HGTG20N60B3D N-Channel IGBT
HGTG20N60C3 N-Channel IGBT
HGTG20N60C3D N-Channel IGBT

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

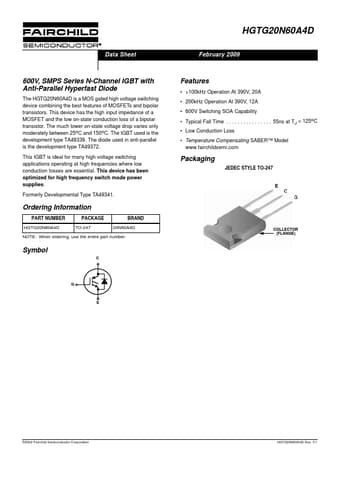

Data Sheet HGTG20N60A4D February 2009 600V, SMPS Series N-Channel IGBT with Anti-Parallel Hyperfast Diode The HGTG20N60A4D is a MOS gated high voltage switching device combining the best features of MOSFETs and bipolar transistors. This device has the high input impedance of a MOSFET and the low on-state conduction loss of a bipolar transistor. The much lower on-state voltage drop varies only moderately between 25oC and 150oC. The IGBT used is the development type TA49339. The diode used in anti-parallel is the development type TA49372. This IGBT is ideal for many high voltage switching applications operating at high frequencies where low conduction losses are essential. This device has been optimized for high frequency switch mode power supplies. Formerly Developmental Type TA49341.
