FNA27560 Datasheet, Fairchild Semiconductor

FNA27560 module equivalent, 600v motion spm 2 module.

FNA27560 Avg. rating / M : 1.0 rating-12

datasheet Download (Size : 924.43KB)

FNA27560 Datasheet

Features and benefits


* UL Certified No. E209204 (UL1557)
* 600 V - 75 A 3-Phase IGBT Inverter, Including Control ICs for Gate Drive and Protections
* Low-Loss, Short-Circuit-Rated.

Application


* Motion Control - Industrial Motor (AC 200 V Class) Related Resources
* AN-9121 - Users Guide for 600V SPM® 2 .

Description

The FNA27560 is a Motion SPM® 2 module providing a fully-featured, high-performance inverter output stage for AC induction, BLDC, and PMSM motors. These modules integrate optimized gate drive of the built-in IGBTs to minimize EMI and losses, while al.

Image gallery

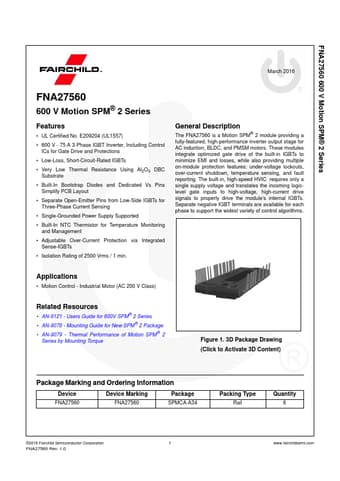

FNA27560 Page 1 FNA27560 Page 2 FNA27560 Page 3
