FLS0116 - MOSFET Integrated Smart LED Lamp Driver

Description

The FLS0116 LED lamp driver is a simple IC with integrated MOSFET and PFC function.

Features

  • Built-in MOSFET(1 A / 550 V).
  • Digitally Implemented Active-PFC Function.
  • No Additional Circuit for Achieving High PF.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FLS-AM0178R585-A AMOLED Osptek
FLS1600XS Half-Bridge LLC Resonant Controller onsemi
FLS1700XS Half-Bridge LLC Resonant Controller onsemi
FLS1800XS Half-Bridge LLC Resonant Controller onsemi
FLS2100XS Half-Bridge LLC Resonant Controller onsemi

Other Datasheets by Fairchild (onsemi)

Part Number Description
FLS010 Front Panel Adapter
FLS3217 Single-Stage PFC Primary-Side-Regulation Offline LED Driver
FLS3217M Single-Stage PFC Primary-Side-Regulation Offline LED Driver
FLS3217N Single-Stage PFC Primary-Side-Regulation Offline LED Driver
FLS3247 Single-Stage PFC Primary-Side-Regulation Offline LED Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

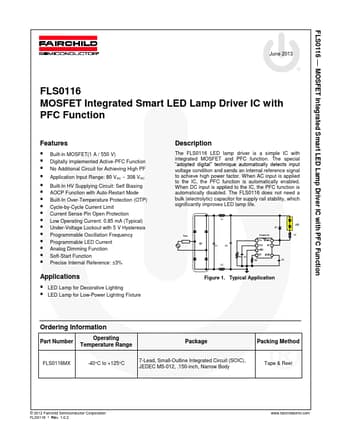

FLS0116 — MOSFET Integrated Smart LED Lamp Driver IC with PFC Function June 2013 FLS0116 MOSFET Integrated Smart LED Lamp Driver IC with PFC Function Features  Built-in MOSFET(1 A / 550 V)  Digitally Implemented Active-PFC Function  No Additional Circuit for Achieving High PF  Application Input Range: 80 VAC ~ 308 VAC  Built-In HV Supplying Circuit: Self Biasing  AOCP Function with Auto-Restart Mode  Built-In Over-Temperature Protection (OTP)  Cycle-by-Cycle Current Limit  Current Sense Pin Open Protection  Low Operating Current: 0.
