CNY17F1M - Phototransistor Optocouplers

Download the CNY17F1M datasheet PDF. This datasheet also covers the CNY171M variant, as both devices belong to the same phototransistor optocouplers family and are provided as variant models within a single manufacturer datasheet.

Description

The CNY17XM, CNY17FXM, and MOC8106M devices consist of a gallium arsenide infrared emitting diode coupled with an NPN phototransistor in a dual in-line package.

Figure 1.

Features

  • High BVCEO: 70 V Minimum (CNY17XM, CNY17FXM, MOC8106M).
  • Closely Matched Current Transfer Ratio (CTR) Minimizes Unit-to-Unit Variation.
  • Current Transfer Ratio In Select Groups.
  • Very Low Coupled Capacitance Along With No Chip-to-Pin 6 Base Connection for Minimum Noise Susceptability (CNY17FXM, MOC8106M).
  • Safety and Regulatory Approvals:.
  • UL1577, 4,170 VACRMS for 1 Minute.
  • DIN-EN/IEC60747-5-5, 850 V Peak Working Insulation Voltage.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CNY171M-FairchildSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
CNY17F PHOTOTRANSISTOR NO BASE CONNECTION OPTOCOUPLER Siemens Semiconductor Group
CNY17F Optocoupler Vishay
CNY17F-1 Phototransistor Optocoupler CT Micro
CNY17F-1 6-PIN DIP OPTOCOUPLERS QT Optoelectronics
CNY17F-1 ISOLATOR PHOTOTRANSISTOR ISOCOM COMPONENTS

Other Datasheets by Fairchild (onsemi)

Part Number Description
CNY17F1 (CNY17F1 - CNY17F4) Phototransistor Optocouplers
CNY17F-1 6-PIN DIP OPTOCOUPLERS
CNY17F-2 6-PIN DIP OPTOCOUPLERS
CNY17F-3 6-PIN DIP OPTOCOUPLERS
CNY17F-4 6-PIN DIP OPTOCOUPLERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

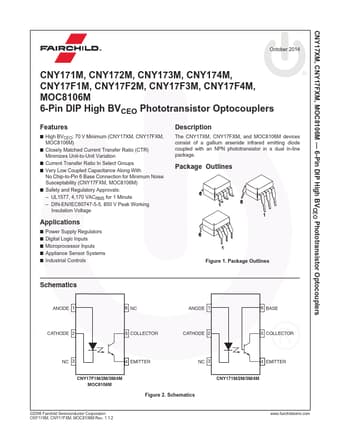

CNY17XM, CNY17FXM, MOC8106M — 6-Pin DIP High BVCEO Phototransistor Optocouplers October 2014 CNY171M, CNY172M, CNY173M, CNY174M, CNY17F1M, CNY17F2M, CNY17F3M, CNY17F4M, MOC8106M 6-Pin DIP High BVCEO Phototransistor Optocouplers Features ■ High BVCEO: 70 V Minimum (CNY17XM, CNY17FXM, MOC8106M) ■ Closely Matched Current Transfer Ratio (CTR) Minimizes Unit-to-Unit Variation ■ Current Transfer Ratio In Select Groups ■ Very Low Coupled Capacitance Along With No Chip-to-Pin 6 Base Connection for Minimum Noise Susceptability (CNY17FXM, MOC8106M) ■ Safety and Regulatory Approvals: – UL1577, 4,170 VACRMS for 1 Minute – DIN-EN/IEC60747-5-5, 850 V Peak Working Insulation Voltage Applications ■ Power Supply Regulators ■ Digital Logic Inputs ■ Microprocessor Inputs ■ Appliance Sensor Systems ■ Indus
