CD4049UBC Datasheet, Fairchild Semiconductor

CD4049UBC buffer equivalent, hex inverting buffer.

CD4049UBC Avg. rating / M : 1.0 rating-13

datasheet Download (Size : 68.99KB)

CD4049UBC Datasheet

Features and benefits

s Wide supply voltage range: 3.0V to 15V s Direct drive to 2 TTL loads at 5.0V over full temperature range s High source and sink current capability s Special input prote.

Application


* CMOS hex inverter/buffer
* CMOS to DTL/TTL hex converter
* CMOS current “sink” or “source” driver
* CM.

Description

The CD4049UBC and CD4050BC hex buffers are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors. These devices feature logic level conversion using only one supply voltage (VDD). The i.

Image gallery

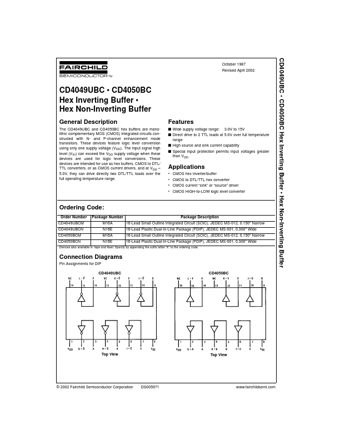

CD4049UBC Page 1 CD4049UBC Page 2 CD4049UBC Page 3
