MA-406 - MHz RANGE CRYSTAL UNIT

Epson Company

Datasheet Details

Part number	MA-406
Manufacturer	Epson Company
File Size	391.26 KB
Description	MHz RANGE CRYSTAL UNIT
Datasheet	MA-406 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
MA-405	Two-Position Actuators General Instructions	Schneider
MA-405-500	Two-Position Actuators General Instructions	Schneider
MA-416	Two-Position Actuators General Instructions	Schneider
MA-416-500	Two-Position Actuators General Instructions	Schneider
MA-418	Two-Position Actuators General Instructions	Schneider

Other Datasheets by Epson Company

Part Number	Description
MA-505	MHz RANGE CRYSTAL UNIT
MA-506	MHz RANGE CRYSTAL UNIT

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

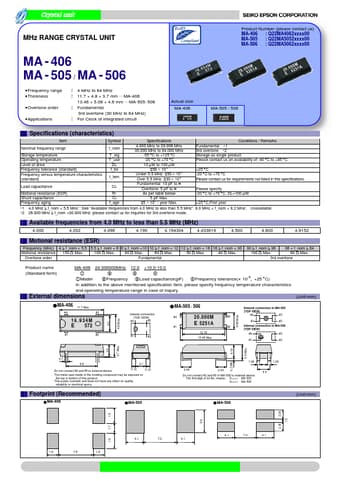

Crystal unit MHz RANGE CRYSTAL UNIT Product Number (please contact us) MA-406 : Q22MA4062xxxx00 MA-505 : Q22MA5052xxxx00 MA-506 : Q22MA5062xxxx00 MA - 406 MA - 505 / MA - 506 Frequency range Thickness Overtone order Applications : 4 MHz to 64 MHz : 11.7 × 4.8 × 3.7 mm ···MA-406 : 13.46 × 5.08 × 4.6 mm ···MA-505 / 506 : Fundamental 3rd overtone (30 MHz to 64 MHz) : For Clock of integrated circuit Actual size MA-406 MA-505 / 506 Specifications (characteristics) Item Symbol Specifications Conditions / Remarks Nominal frequency range f_nom 4.000 MHz to 29.999 MHz 30.000 MHz to 64.000 MHz Fundamental *1 3rd overtone *2 Storage temperature T_stg -55 C to +125 C Storage as single product.
