SCO-745 - SMD OSCILLATOR

Download the SCO-745 datasheet PDF. This datasheet also covers the SCO-700 variant, as both devices belong to the same smd oscillator family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • 1. Ultra miniature package clock oscillator with size of 7.0 x 5.0 x 1.5 mm. SCO-710: 7.0 x 5.0 x 1.4 mm 2. Tri-State enable / disable (E/D). 3. TTL/HCMOS compatible. 4. IR Re-flow. 5. Tape and Reel. 6. Supply Voltage : 5.0 V, 3.3 V, 2.8 V and 1.8 V option. Actual Size.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SCO-700-ETC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SCO-745
Manufacturer Unknown Manufacturer
File Size 111.75 KB
Description SMD OSCILLATOR
Datasheet download datasheet SCO-745 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SCO-02025D (SCO-02xxx) Crystal Oscillator Korea Electronics
SCO-06 Crystal Oscillator SUNNY
SCO-10 CRYSTAL OSCILLATORS SUNNY
SCO-2016 CRYSTAL OSCILLATOR SIWARD
SCO-2520 CRYSTAL OSCILLATOR SIWARD

Other Datasheets by Unknown Manufacturer

Part Number Description
SCO-700 SMD OSCILLATOR
SCO-710 SMD OSCILLATOR
SCO-716 SMD OSCILLATOR
SCO-718 SMD OSCILLATOR
SCO-725 SMD OSCILLATOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

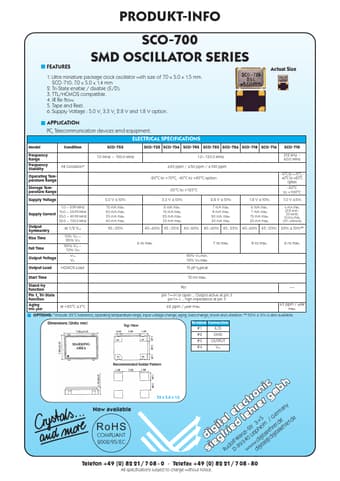

PRODUKT-INFO SCO-700 SMD OSCILLATOR SERIES FEATURES 1. Ultra miniature package clock oscillator with size of 7.0 x 5.0 x 1.5 mm. SCO-710: 7.0 x 5.0 x 1.4 mm 2. Tri-State enable / disable (E/D). 3. TTL/HCMOS compatible. 4. IR Re-flow. 5. Tape and Reel. 6. Supply Voltage : 5.0 V, 3.3 V, 2.8 V and 1.8 V option. Actual Size APPLICATION PC, Telecommunication devices amd equipment. ELECTRICAL SPECIFICATIONS Model Condition SCO-755 SCO-735 SCO-736 SCO-745 SCO-725 SCO-726 SCO-718 SCO-716 SCO-710 Frequency Range Frequency Stability All Condition* Operating Temperature Range Storage Temperature Range 1.0 MHz ~ 100.0 MHz 1.0~133.0 MHz ±25 ppm / ±50 ppm / ±100 ppm -20°C to +70°C, -40°C to +85°C option -55°C to +125°C 312 kHz ~ 60.
