5490A counter equivalent, decade counter.

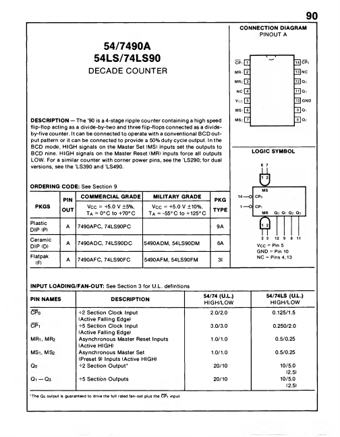

— The ’90 is a 4-stage ripple counter containing a high speed flip-flop acting as a divide-by-two and three flip-flops connected as a divideby-five counter. It can be connected to operate with a conventional BCD out put pattern or it can be connecte.
