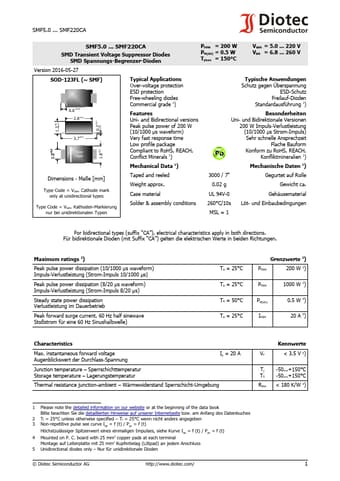

Datasheet Summary
SMF5 SMF220CA
SMF5 SMF220CA SMD Transient Voltage Suppressor Diodes
SMD Spannungs-Begrenzer-Dioden
PPPM = 200 W PM(AV) = 0.5 W Tjmax = 150°C
VWM = 5 220 V VBR = 6 260 V
Version 2016-05-27
+0.11.3 0.3
SOD-123FL (~ SMF)
0.6±0.25 2.8±0.2
3.7±0.2
Type Code
0.2±0.1
1.8±0.2
Typical Applications Over-voltage protection ESD protection Free-wheeling diodes mercial grade 1) Features
Uni- and Bidirectional versions Peak pulse power of 200 W (10/1000 µs waveform) Very fast response time Low profile package pliant to RoHS, REACH, Conflict Minerals 1)
WEEE
Typische Anwendungen Schutz gegen Überspannung
ESD-Schutz Freilauf-Dioden Standardausführung 1)
Besonderheite...
