ZXCT1087 - PRECISION HIGH VOLTAGE HIGH-SIDE CURRENT MONITORS

Download the ZXCT1087 datasheet PDF. This datasheet also covers the ZXCT1082 variant, as both devices belong to the same precision high voltage high-side current monitors family and are provided as variant models within a single manufacturer datasheet.

Description

The ZXCT1082 and ZXCT1083 are high side unipolar current sense monitors.

These devices eliminate the need to disrupt the ground plane when sensing a load current.

The ZXCT1082/1084/1086 have 60V maximum operating voltage and ZXCT1083/1085/1087 have 40V maximum operating voltage.

Features

  • Wide supply and common-mode voltage range o 2.7V to 60V ZXCT1082/84/86 o 2.7V to 40V ZXCT1083/85/87 Independent supply and input common-mode voltage Low quiescent current (0.6µA). Extended industrial temperate range -40 to 125°C Package SOT25 GND ZXCT1084/85: ZXCT1086/87:.
  • VOUT = 25 x VSENSE VOUT = 50 x VSENSE RSENSE.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ZXCT1082_Diodes.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
ZXCT1009 HIGH-SIDE CURRENT MONITOR Zetex Semiconductors
ZXCT1011 High-side low drift current monitor Zetex Semiconductors
ZXCT1012 Reduced height micro-power current monitor Zetex Semiconductors
ZXCT1020 Low offset current output current monitor Zetex Semiconductors
ZXCT1021 LOW OFFSET HIGH-SIDE CURRENT MONITOR Zetex Semiconductors

Other Datasheets by Diodes Incorporated

Part Number Description
ZXCT1087Q AUTOMOTIVE GRADE PRECISION HIGH VOLTAGE HIGH-SIDE CURRENT MONITORS
ZXCT1080 HIGH VOLTAGE HIGH-SIDE CURRENT MONITOR
ZXCT1080Q AUTOMOTIVE GRADE 60/40V HIGH-SIDE CURRENT MONITOR
ZXCT1081 HIGH VOLTAGE HIGH-SIDE CURRENT MONITOR
ZXCT1081Q AUTOMOTIVE GRADE 60/40V HIGH-SIDE CURRENT MONITOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

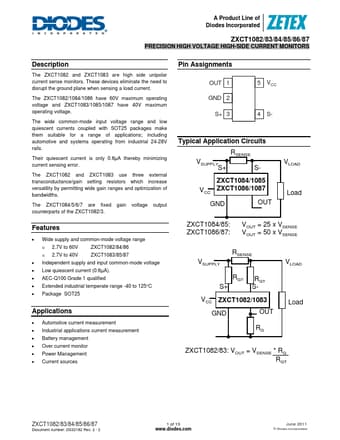

A Product Line of Diodes Incorporated www.DataSheet4U.com ZXCT1082/83/84/85/86/87 PRECISION HIGH VOLTAGE HIGH-SIDE CURRENT MONITORS Description The ZXCT1082 and ZXCT1083 are high side unipolar current sense monitors. These devices eliminate the need to disrupt the ground plane when sensing a load current. The ZXCT1082/1084/1086 have 60V maximum operating voltage and ZXCT1083/1085/1087 have 40V maximum operating voltage. The wide common-mode input voltage range and low quiescent currents coupled with SOT25 packages make them suitable for a range of applications; including automotive and systems operating from industrial 24-28V rails. Their quiescent current is only 0.6µA thereby minimizing current sensing error.
