DZ9F6V8S92, DZ9F2V7S92 - SURFACE MOUNT ZENER DIODE

Name: DZ9F6V8S92
SKU: DZ9F6V8S92-1384879

Diodes

The DZ9F6V8S92 by Diodes is a SURFACE MOUNT ZENER DIODE. Below is the official datasheet preview.

Datasheet Details

Part number	DZ9F6V8S92, DZ9F2V7S92
Manufacturer	DIODES
File Size	499.41 KB
Description	SURFACE MOUNT ZENER DIODE
Datasheet	DZ9F2V7S92-Diodes.pdf
Note	This datasheet PDF includes multiple part numbers: DZ9F6V8S92, DZ9F2V7S92. Please refer to the document for exact specifications by model.

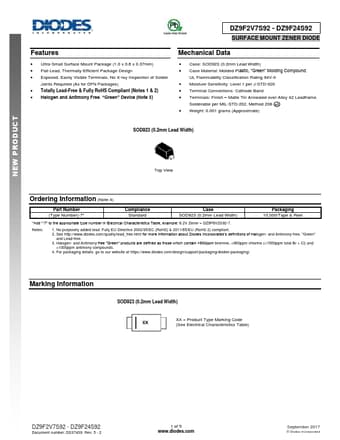

Additional preview pages of the DZ9F6V8S92 datasheet.

Ultra-Small Surface Mount Package (1.0 x 0.6 x 0.37mm).
Flat-Lead, Thermally-Efficient Package Design.
Exposed, Easily Visible Terminals, No X-ray Inspection of Solder Joints Required (As for DFN Packages).
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3) Mechanical Data.
Case: SOD923 (0.2mm Lead Width).
Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-.
