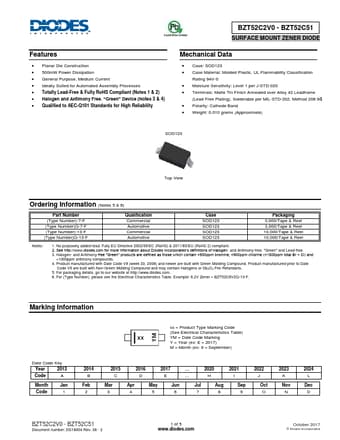

Features - Planar Die Construction - 500m W Power Dissipation - General Purpose, Medium Current - Ideally Suited for Automated Assembly Processes - Totally Lead-Free & Fully Ro HS pliant (Notes 1 & 2) - Halogen and Antimony Free. “Green” Device (Notes 3 & 4) - Qualified to AEC-Q101 Standards for High Reliability BZT52C2V0 - BZT52C51 SURFACE MOUNT ZENER DIODE Mechanical Data - Case: SOD123 - Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 - Moisture Sensitivity: Level 1 per J-STD-020 - Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208 - Polarity: Cathode Band - Weight: 0.010 grams (Approximate) SOD123 Top View Ordering Information (Notes 5 & 6) Part Number (Type Number)-7-F (Type Number)Q-7-F (Type Number)-13-F (Type Number)Q-13-F Qualification mercial Automotive mercial Automotive Case SOD123 SOD123 SOD123 SOD123 Packaging 3,000/Tape & Reel 3,000/Tape & Reel 10,000/Tape & Reel 10,000/Tape & Reel Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (Ro HS) & 2011/65/EU (Ro HS 2) pliant. 2. See http://.diodes. for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds. 4. Product manufactured with Date Code V9 (week 33, 2008) and newer are built with Green Molding pound. Product manufactured prior to...
