AL1792
AL1792 is Single/Dual/Triple/Quad-Channel Current-Ratio-Optimized LED Driver manufactured by Diodes Incorporated.
- Part of the AL1791 comparator family.
- Part of the AL1791 comparator family.

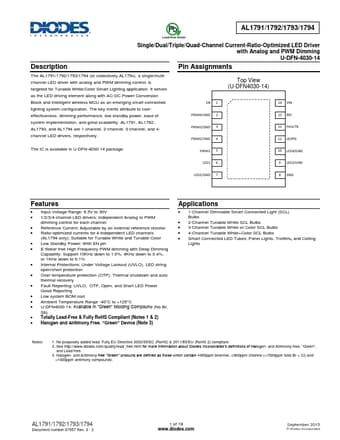

ADVANCED INFORMATIO
AL1791/1792/1793/1794
Description
Single/Dual/Triple/Quad-Channel Current-Ratio-Optimized LED Driver with Analog and PWM Dimming U-DFN-4030-14
Pin Assignments
The AL1791/1792/1793/1794 (or collectively AL179x), a single/multichannel LED driver with analog and PWM dimming control, is targeted for Tunable White/Color Smart Lighting application. It serves as the LED driving element along with AC-DC Power Conversion Block and Intelligent wireless MCU as an emerging smart-connected lighting system configuration. The key merits attribute to costeffectiveness, dimming performance, low standby power, ease of system implementation, and great scalability. AL1791, AL1792, AL1793, and AL1794 are 1-channel, 2-channel, 3-channel, and 4channel LED drivers, respectively.
Top View (U-DFN4030-14)
EN 1 PWM4/GND 2 PWM3/GND 3 PWM2/GND 4
14 VIN 13 REF 12 FAULTB 11 LEDPG
The IC is available in U-DFN-4030-14 package.
PWM1 5
10 LED4/GND
LED1 6
9 LED3/GND
LED2/GND 7
8...
