74HC04 datasheet, inverters equivalent, Diodes

Avg. rating / M : 1.0 rating-1

datasheet Download (Size : 270.06KB)

Features and benefits

* Wide Supply Voltage Range from 2.0V to 6.0V
* Sinks or sources 4mA at Vcc = 4.5V
* CMOS low power consumption
* Schmitt Trigger Action at All Inputs

Application

* General Purpose Logic
* Wide array of products such as: PCs, networking, notebooks, netbooks Computer peri.

Description

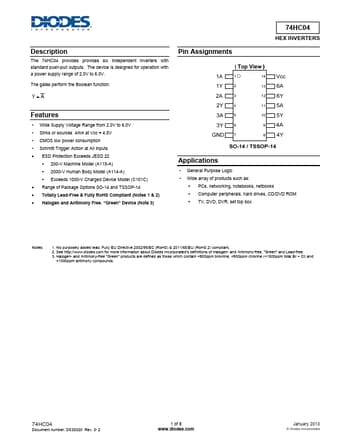

The 74HC04 provides provides six independent inverters with standard push-pull outputs. The device is designed for operation with a power supply range of 2.0V to 6.0V. The gates perform the Boolean function: Y=A Pin Assignments 74HC04 HEX INVERTERS.
