DTQ6336 - N-Channel MOSFET

Download the DTQ6336 datasheet PDF. This datasheet also covers the DTQ6336-Din variant, as both devices belong to the same n-channel mosfet family and are provided as variant models within a single manufacturer datasheet.

Features

  • DT-Trench Power MOSFET.
  • 100 % Rg and UIS Tested.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DTQ6336-Din-Tek.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DTQ6336
Manufacturer Din-Tek
File Size 468.55 KB
Description N-Channel MOSFET
Datasheet download datasheet DTQ6336 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DTQ-13V6FCB Color TV Daewoo
DTQ-13V6FCP Color TV Daewoo
DTQ-14D7SS Service Manual DAEWOO
DTQ-14D7SSP Service Manual DAEWOO
DTQ-14J (DTQ-xxx) Service Manual Daewoo

Other Datasheets by Din-Tek

Part Number Description
DTQ633 P-Channel MOSFET
DTQ6331 P-Channel MOSFET
DTQ6300 N-Channel MOSFET
DTQ6301 P-Channel MOSFET
DTQ6302 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

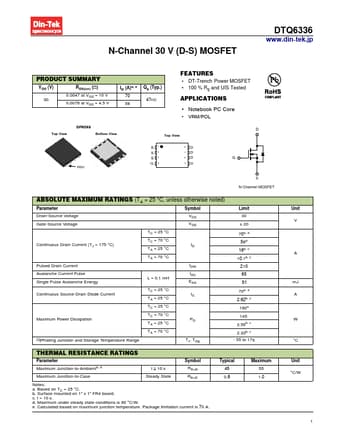

N-Channel 30 V (D-S) MOSFET DTQ6336 www.din-tek.jp PRODUCT SUMMARY VDS (V) 30 RDS(on) () 0.0047 at VGS = 10 V 0.0076 at VGS = 4.5 V ID (A)a, e 70 58 Qg (Typ.) 47nC FEATURES • DT-Trench Power MOSFET • 100 % Rg and UIS Tested APPLICATIONS • Notebook PC Core • VRM/POL DFN5X6 D Top View Bottom View Top View PIN1 1 8 2 7 3 6 4 5 G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 175 °C) TC = 70 °C ID TA = 25 °C TA = 70 °C Pulsed Drain Current IDM Avalanche Current Pulse Single Pulse Avalanche Energy IAS L = 0.
