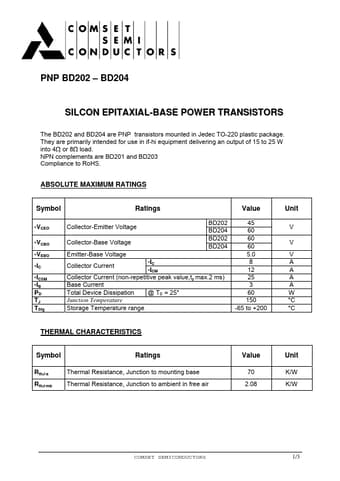

PNP BD202 – BD204 SILCON EPITAXIAL-BASE POWER TRANSISTORS The BD202 and BD204 are PNP transistors mounted in Jedec TO-220 plastic package. They are primarily intended for use in if-hi equipment delivering an output of 15 to 25 W into 4Ω or 8Ω load. NPN complements are BD201 and BD203 Compliance to RoHS. ABSOLUTE MAXIMUM RATINGS Symbol -VCEO -VCBO -VEBO -IC -ICSM -IB PD TJ TStg Ratings Collector-Emitter Voltage Collector-Base Voltage www.DataSheet.net/ Value BD202 BD204 BD202 BD204 45 60 60 60 5.0 8 12 25 3 60 150 -65 to +200 Unit V V V A A A A W °C °C Emitter-Base Voltage -IC Collector Current -ICM Collector Current (non-repetitive peak value,tp max.
