A5KP200A-G - 5000W Transient Voltage Suppressor

Download the A5KP200A-G datasheet PDF. This datasheet also covers the A5KP5.0A-G variant, as both devices belong to the same 5000w transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Features

  • - Glass passivated chip. - 5000W peak pulse power capability with a 10/1000µs waveform, repetitive rate (duty cycle):0.01% - Low leakage. - Uni and Bidirectional unit. - Excellent clamping capability. - Very fast response time. - Comply with AEC-Q101 - UL recognized file # E349157 R - Range: A5KP5.0(C)A thru. A5KP190(C)A Mechanical Data -Case: Molded plastic. -Epoxy: UL 94V-0 rate flame retardant -Lead: Solderable per MIL-STD-202, method 208 guranteed. -Polarity: Color band denotes cathode end e.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (A5KP5.0A-G-Comchip.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number A5KP200A-G
Manufacturer Comchip
File Size 90.67 KB
Description 5000W Transient Voltage Suppressor
Datasheet download datasheet A5KP200A-G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Comchip

Part Number Description
A5KP200CA-G 5000W Transient Voltage Suppressor
A5KP20A-G 5000W Transient Voltage Suppressor
A5KP20CA-G 5000W Transient Voltage Suppressor
A5KP210A-G 5000W Transient Voltage Suppressor
A5KP210CA-G 5000W Transient Voltage Suppressor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

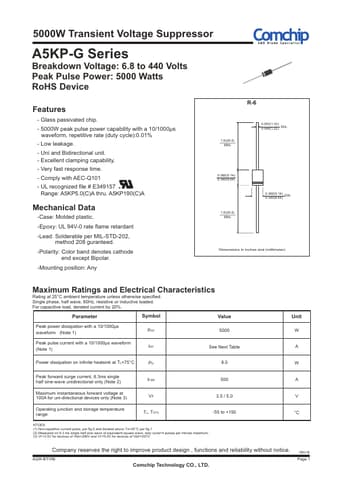

5000W Transient Voltage Suppressor A5KP-G Series Breakdown Voltage: 6.8 to 440 Volts Peak Pulse Power: 5000 Watts RoHS Device Features - Glass passivated chip. - 5000W peak pulse power capability with a 10/1000µs waveform, repetitive rate (duty cycle):0.01% - Low leakage. - Uni and Bidirectional unit. - Excellent clamping capability. - Very fast response time. - Comply with AEC-Q101 - UL recognized file # E349157 R - Range: A5KP5.0(C)A thru. A5KP190(C)A Mechanical Data -Case: Molded plastic. -Epoxy: UL 94V-0 rate flame retardant -Lead: Solderable per MIL-STD-202, method 208 guranteed. -Polarity: Color band denotes cathode end except Bipolar. -Mounting position: Any R-6 1.0(25.4) MIN. 0.052(1.32) 0.048(1.22) DIA. 0.360(9.14) 0.340(8.64) 1.0(25.4) MIN. 0.360(9.14) 0.340(8.64) DIA.
