GBY321611T - SMD Multilayer Ferrite Chip Beads

Download the GBY321611T datasheet PDF. This datasheet also covers the GBY32 variant, as both devices belong to the same smd multilayer ferrite chip beads family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GBY32-1611T.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number GBY321611T
Manufacturer Chilisin
File Size 540.62 KB
Description SMD Multilayer Ferrite Chip Beads
Datasheet download datasheet GBY321611T Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Chilisin

Part Number Description
GBY201209T SMD Multilayer Ferrite Chip Beads

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

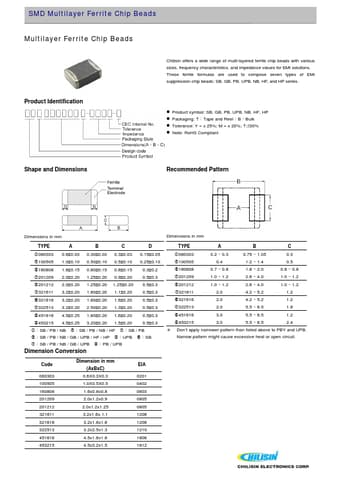

SMD Multilayer Ferrite Chip Beads Multilayer Ferrite Chip Beads Product Identification Chilisin offers a wide range of multi-layered ferrite chip beads with various sizes, frequency characteristics, and impedance values for EMI solutions. These ferrite formulas are used to compose seven types of EMI suppression chip beads: SB, GB, PB, UPB, NB, HF, and HP series.  Product symbol: SB, GB, PB, UPB, NB, HF, HP  Packaging: T：Tape and Reel；B：Bulk  Tolerance: Y = ± 25%; M = ± 20%; T:±30%  Note: RoHS Compliant Shape and Dimensions Recommended Pattern Dimensions in mm Dimensions in mm TYPE A B C D 060303 0.60.03 0.300.03 0.30.03 0.150.05 100505 1.00.10 0.500.10 0.50.10 0.250.10 160808 1.60.15 0.800.15 0.80.15 0.30.2 201209 2.00.20 1.250.20 0.90.20 0.50.
