BSS75, BSS74 PNP SILICON HIGH VOLTAGE TRANSISTOR

BSS75 Description

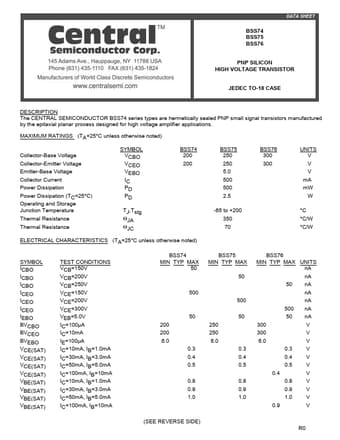

BSS74 BSS75 BSS76 DATA SHEET PNP SILICON HIGH VOLTAGE TRANSISTOR JEDEC TO-18 CASE .
The CENTRAL SEMICONDUCTOR BSS74 series types are hermetically sealed PNP small signal transistors manufactured by the epitaxial planar process designe.

BSS75 Applications

* MAXIMUM RATINGS (TA=25°C unless otherwise noted) Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Power Dissipation Power Dissipation (TC=25°C) Operating and Storage Junction Temperature Thermal Resistance Thermal Resistance SYMBOL VCBO VCEO VEBO IC PD PD T

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BSS75, BSS74. Please refer to the document for exact specifications by model.
