CD0603-S01575 - Switching Chip Diode

Features

  • RoHS compliant.
  • Leadless 0603 (1608) chip.
  • High speed switching Model CD0603-S01575 is currently available, although not recommended for new designs. CD0603-S01575 Switching Chip Diode General Information The markets of portable communications, computing and video equipment are challenging the semiconductor industry to develop increasingly smaller electronic components. Bourns offers small-signal high-speed Switching Diodes for switching digital signal.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CD0.2A20 SCHOTTKY BARRIER RECTIFIER Compensated Deuices Incorporated
CD0.2A30 SCHOTTKY BARRIER RECTIFIER Compensated Deuices Incorporated
CD0.2A40 SCHOTTKY BARRIER RECTIFIER Compensated Deuices Incorporated
CD0.5A20 SCHOTTKY BARRIER RECTIFIER Compensated Deuices Incorporated
CD0.5A30 SCHOTTKY BARRIER RECTIFIER Compensated Deuices Incorporated

Other Datasheets by Bourns

Part Number Description
CD0603-S0180 Switching Chip Diode
CD0603-S0180R Switching Chip Diode
CD0603-B0240R Schottky Barrier Chip Diode
CD0603-B0340R Schottky Barrier Chip Diode
CD0603 Schottky Barrier Chip Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

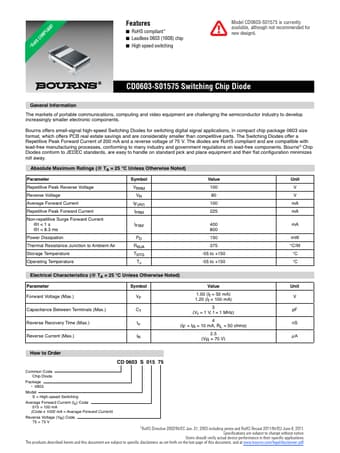

View original datasheet text
*RoHS COMPLIANT Features ■ RoHS compliant* ■ Leadless 0603 (1608) chip ■ High speed switching Model CD0603-S01575 is currently available, although not recommended for new designs. CD0603-S01575 Switching Chip Diode General Information The markets of portable communications, computing and video equipment are challenging the semiconductor industry to develop increasingly smaller electronic components. Bourns offers small-signal high-speed Switching Diodes for switching digital signal applications, in compact chip package 0603 size format, which offers PCB real estate savings and are considerably smaller than competitive parts. The Switching Diodes offer a Repetitive Peak Forward Current of 200 mA and a reverse voltage of 75 V.
