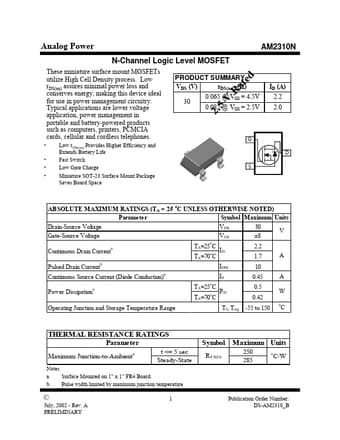

Analog Power
AM2310N
N-Channel Logic Level MOSFET
These miniature surface mount MOSFETs utilize High Cell Density process. Low rDS(on) assures minimal power loss and conserves energy, making this device ideal for use in power management circuitry. Typical applications are lower voltage application, power management in portable and battery-powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones.
• Low rDS(on) Provides Higher Efficiency and Extends Battery Life
• Fast Switch
• Low Gate Charge
• Miniature SOT-23 Surface Mount Package Saves Board Space
2.5-V Rated
PRODUCT SUMMARY
VDS (V)
rDS(on) (Ω)
30 0.065 @ VGS = 4.5V 0.082 @ VGS = 2.5V
G S
ID (A) 2.2 2.
