AF1117, AF1117-Alfa - Low Dropout Positive Voltage Regulator

AF1117 Description

Alfa-MOS Technology AF1117 1A / 20V Low Dropout Positive Voltage Regulator General .
The AF1117 series of positive adjustable regulators are designed to provide 1A with high efficiency.

AF1117 Features

* Adjustable Output
* Output Current of 1A
* Low Dropout, 1.3 V typ. at 1A Output Current
* 0.04% Line Regulation
* 0.2 % Load Regulation
* 100% Thermal Limit Burn-In

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AF1117, AF1117-Alfa. Please refer to the document for exact specifications by model.

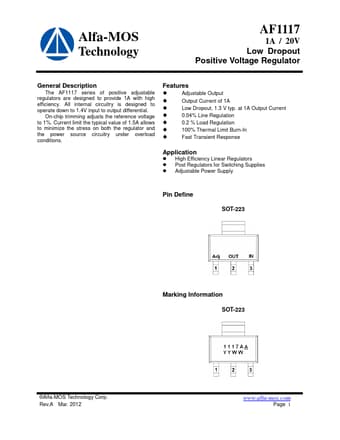

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AF1117, AF1117-Alfa
Manufacturer
Alfa-MOS
File Size
163.39 KB
Datasheet
AF1117-Alfa-MOS.pdf
Description
Low Dropout Positive Voltage Regulator
Note
This datasheet PDF includes multiple part numbers: AF1117, AF1117-Alfa.
Please refer to the document for exact specifications by model.
