TV2004 Silicon Hyperabrupt Tuning Varactors

Silicon Hyperabrupt Tuning Varactors: VHF Bare Die Ceramic Epoxy SMT Glass Axial Leaded High Reliability, Silicon Planar Hermetically Sealed Octave Tuning or Ultra-High Q Applications Straight-Line Frequency Applications Over a 3 to 8 Volt Bias Range Low Cost Applications The Aeroflex / Metelics VHF Tuning Varactors are Ion-implanted highly reproducible hyperabrupt diodes which allow octave tuning of LC tanks up to 500 MHZ or, with a reduced 1.5 to 1 fr.

TV2001-Aeroflex.pdf

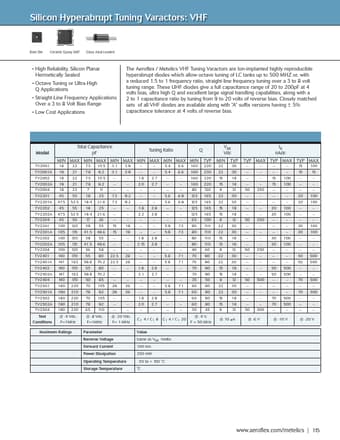

TV2004 Datasheet Preview — This datasheet PDF includes multiple part numbers: TV2004, TV2001. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TV2004, TV2001

Manufacturer:

Aeroflex

File Size:

68.39 KB

Description:

Silicon hyperabrupt tuning varactors.

Note:

This datasheet PDF includes multiple part numbers: TV2004, TV2001.
Please refer to the document for exact specifications by model.
