HSMS-2863 - Surface Mount Microwave Schottky Detector Diodes

Download the HSMS-2863 datasheet PDF. This datasheet also covers the HSMS-2860 variant, as both devices belong to the same surface mount microwave schottky detector diodes family and are provided as variant models within a single manufacturer datasheet.

Description

Avago’s HSMS‑286x family of DC biased detector diodes have been designed and optim­ized for use from 915 MHz to 5.8 GHz.They are ideal for RF/ID and RFTag applications as well as large signal detection, modulation, RF to DC conversion or voltage doubling.

Features

  • Surface Mount SOT-23/SOT‑143 Packages.
  • Miniature SOT-323 and SOT‑363 Packages.
  • High Detection Sensitivity:   up to 50 mV/µW at 915 MHz   up to 35 mV/µW at 2.45 GHz   up to 25 mV/µW at 5.80 GHz.
  • Low FIT (Failure in Time) Rate.
  • Tape and Reel Options Available.
  • Unique Configurations in Surface Mount SOT-363 Package.
  • increase flexibility.
  • save board space.
  • reduce cost.
  • HSMS-286K Grounded Center Lea.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HSMS-2860-AVAGO.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number HSMS-2863
Manufacturer AVAGO
File Size 304.14 KB
Description Surface Mount Microwave Schottky Detector Diodes
Datasheet download datasheet HSMS-2863 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HSMS-2863 Surface Mount RF Schottky Barrier Diodes HP
HSMS-2863 Surface Mount Microwave Schottky Detector Diodes Agilent Technologies
HSMS-2860 Surface Mount Microwave Agilent Technologies
HSMS-2860 Surface Mount RF Schottky Barrier Diodes HP
HSMS-2862 Surface Mount Microwave Agilent Technologies

Other Datasheets by AVAGO

Part Number Description
HSMS-2860 Surface Mount Microwave Schottky Detector Diodes
HSMS-2862 Surface Mount Microwave Schottky Detector Diodes
HSMS-2864 Surface Mount Microwave Schottky Detector Diodes
HSMS-2865 Surface Mount Microwave Schottky Detector Diodes
HSMS-286B Surface Mount Microwave Schottky Detector Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

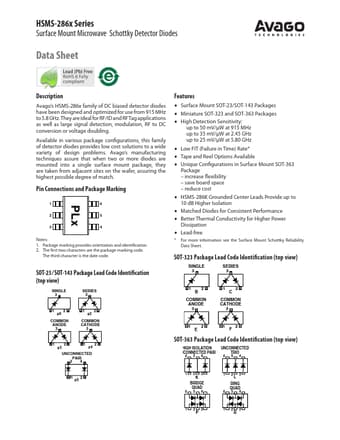

HSMS-286x Series Surface Mount Microwave Schottky Detector Diodes Data Sheet Description Avago’s HSMS‑286x family of DC biased detector diodes have been designed and optim­ized for use from 915 MHz to 5.8 GHz.They are ideal for RF/ID and RFTag applications as well as large signal detection, modulation, RF to DC conversion or voltage doubling. Available in various package ­conf­igurations, this family of detector diodes provides low cost solutions to a wide variety of design problems. Avago’s manufacturing techniques assure that when two or more diodes are mounted into a single surface mount package, they are taken from adjacent sites on the wafer, assuring the highest possible degree of match. Pin Connections and Package Marking 16 25 34 Notes: 1.
