HDLG-3416, HDLO-3416 - Alphanumeric Displays

Name: HDLG-3416
SKU: HDLG-3416-1395138

AVAGO

The HDLG-3416 by AVAGO is a Alphanumeric Displays. Below is the official datasheet preview.

Datasheet Details

Part number	HDLG-3416, HDLO-3416
Manufacturer	AVAGO
File Size	286.38 KB
Description	Alphanumeric Displays
Datasheet	HDLO-3416-AVAGO.pdf
Note	This datasheet PDF includes multiple part numbers: HDLG-3416, HDLO-3416. Please refer to the document for exact specifications by model.

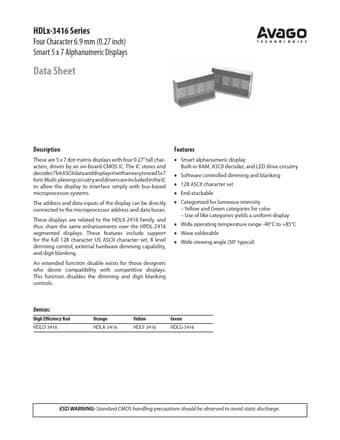

Additional preview pages of the HDLG-3416 datasheet.

These are 5 x 7 dot matrix displays with four 0.27”tall characters, driven by an on-board CMOS IC.

include support for the full 128 character US ASCII character set, 8 level dimming control, external hardware dimming capability, and digit blanking. An extended function disable exists for those designers who desire compatibility with competitive displays. This function disables the dimming and digit blanking controls. Features.
 Smart alphanumeric display Built-in RAM, ASCII decoder, and LED drive circuitry.
 Software controlled dimming and blanking.
 128 ASCII character set.
