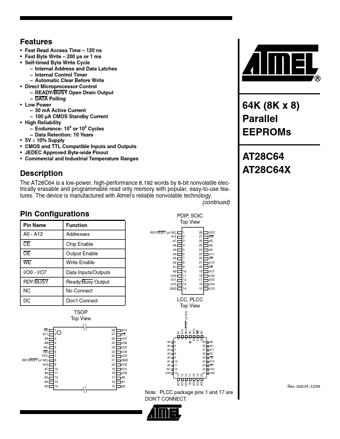

AT28C64X
AT28C64X is 64K (8K x 8) Parallel EEPROMs manufactured by Atmel.
Features
- Fast Read Access Time
- 120 ns
- Fast Byte Write
- 200 µs or 1 ms
- Self-timed Byte Write Cycle
- Internal Address and Data Latches
- Internal Control Timer
- Automatic Clear Before Write
- Direct Microprocessor Control
- READY/BUSY Open Drain Output
- DATA Polling
- Low Power
- 30 m A Active Current
- 100 µA CMOS Standby Current
- High Reliability
- Endurance: 104 or 105 Cycles
- Data Retention: 10 Years
- 5V ± 10% Supply
- CMOS and TTL patible Inputs and Outputs
- JEDEC Approved Byte-wide Pinout
- mercial and Industrial Temperature Ranges
Description
The AT28C64 is a low-power, high-performance 8,192 words by 8-bit nonvolatile electrically erasable and programmable read only memory with popular, easy-to-use Features
. The device is manufactured with Atmel’s reliable nonvolatile technology.
(continued)
Pin Configurations
Pin Name A0
- A12 CE OE WE I/O0
- I/O7 RDY/BUSY NC...
