TP358 - Micro-Power CMOS Op-Amps

Download the TP358 datasheet PDF. This datasheet also covers the TP321 variant, as both devices belong to the same micro-power cmos op-amps family and are provided as variant models within a single manufacturer datasheet.

Description

TP321/358/324 are general purpose single, dual and quad CMOS op-amps with low offset, high frequency response, low power, low supply voltage, and rail-to-rail inputs and outputs.

Features

  • General Purpose, Low Cost.
  • Gain Bandwidth Product: 1MHz.
  • Low Quiescent Current: 45μA/Amplifier.
  • Offset Voltage: 5.0mV Maximum.
  • Offset Voltage Temperature Drift: 2uV/°C.
  • Input Bias Current: 10pA.
  • CMRR/PSRR: 90dB.
  • Unity Gain Stable.
  • Rail-to-Rail Input and Output.
  • No Phase Reversal for Overdriven Inputs.
  • Supply Voltage Range:.
  • TP321-DF0R: 2.1V to 5.5V.
  • Other Part: 2.1V to 6.0V.
  • Operation Range:.
  • 40°C to 125°C.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TP321-3Peak.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TP358
Manufacturer 3Peak
File Size 1.13 MB
Description Micro-Power CMOS Op-Amps
Datasheet download datasheet TP358 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TP3.5x9 Push-Type DC Tubular Solenoid Guardian
TP3.5x9-C-12 Push-Type DC Tubular Solenoid Guardian
TP3.5x9-C-24 Push-Type DC Tubular Solenoid Guardian
TP3.5x9-I-12 Push-Type DC Tubular Solenoid Guardian
TP3.5x9-I-24 Push-Type DC Tubular Solenoid Guardian

Other Datasheets by 3Peak

Part Number Description
TP321 Micro-Power CMOS Op-Amps
TP3222N Up to 470kbps RS-232 Transceivers
TP3232N Up to 470kbps RS-232 Transceivers
TP324 Micro-Power CMOS Op-Amps

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

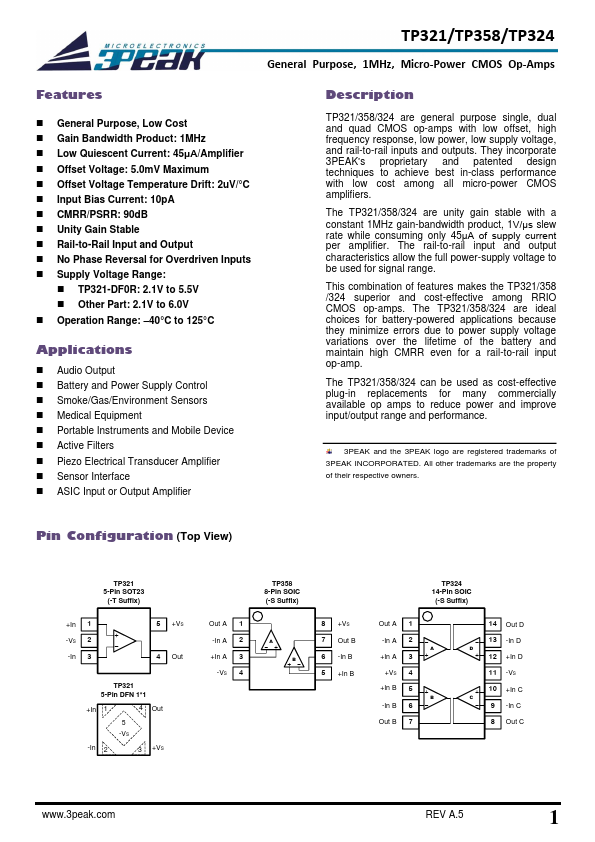

TP321/TP358/TP324 General Purpose, 1MHz, Micro-Power CMOS Op-Amps Features ◼ General Purpose, Low Cost ◼ Gain Bandwidth Product: 1MHz ◼ Low Quiescent Current: 45μA/Amplifier ◼ Offset Voltage: 5.0mV Maximum ◼ Offset Voltage Temperature Drift: 2uV/°C ◼ Input Bias Current: 10pA ◼ CMRR/PSRR: 90dB ◼ Unity Gain Stable ◼ Rail-to-Rail Input and Output ◼ No Phase Reversal for Overdriven Inputs ◼ Supply Voltage Range: ◼ TP321-DF0R: 2.1V to 5.5V ◼ Other Part: 2.1V to 6.
