TPL5031 Low-Dropout Linear Regulator

The TPL5031 series products are 300-mA high PSRR, low noise, and low dropout linear regulators with high output accuracy. The TPL5031 series products support both fixed output voltage ranges from 0.75 V to 3.6 V and adjustable output voltage ranges from 0.75 V to 5 V with an external resistor divide.

TPL5031 Features

* Input Voltage Range: 1.5 V to 5.5 V

* Output Voltage Range:

* Fixed Output Voltage: 0.75 V to 3.6 V

* Adjustable Output Voltage: 0.75 V to 5 V

* ±1% Typical Output Accuracy Under Room Temperature

* 300 mA Maximum Output Current

* Low Dropout Voltage: 250 mV Typi

TPL5031 Datasheet (974.54 KB)

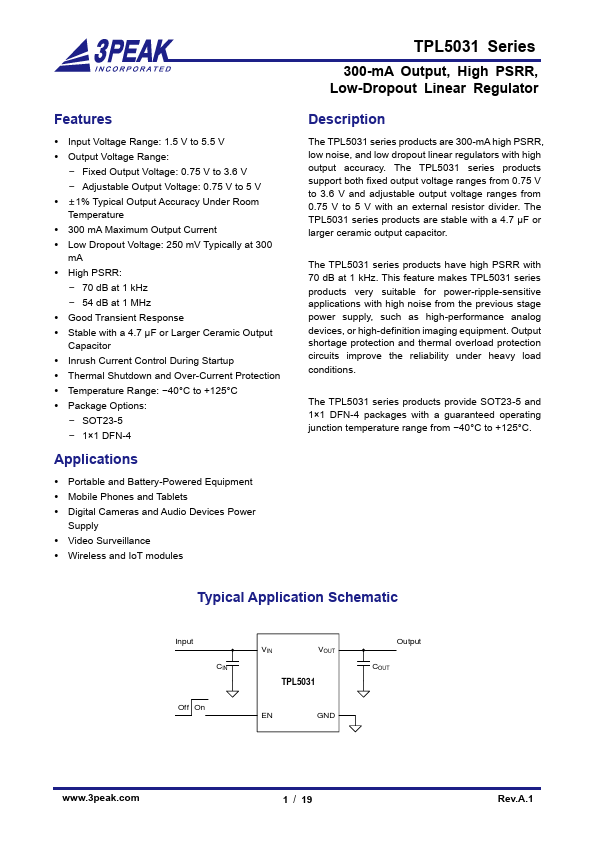

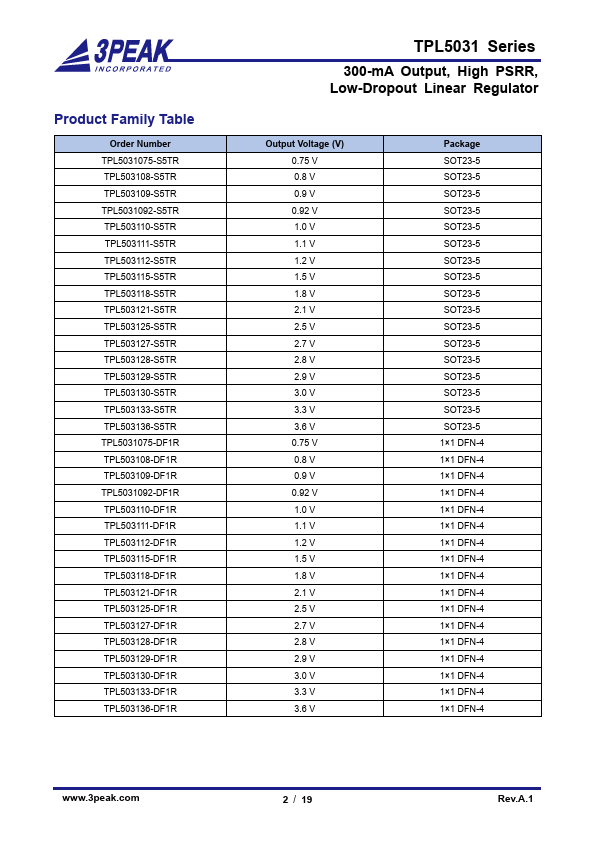

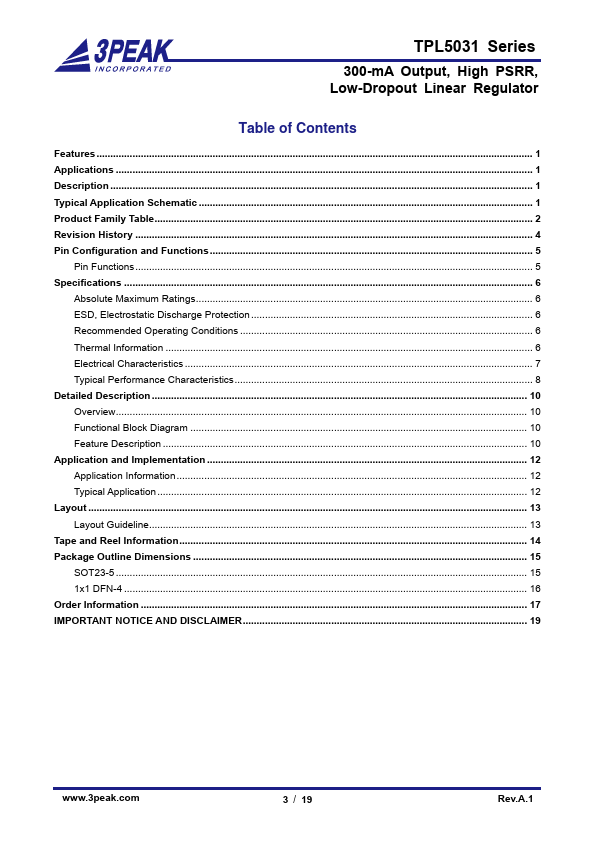

TPL5031 Datasheet Preview — Preview of TPL5031 PDF

Datasheet Details

Part number:

TPL5031

Manufacturer:

3PEAK

File Size:

974.54 KB

Description:

Low-dropout linear regulator.
