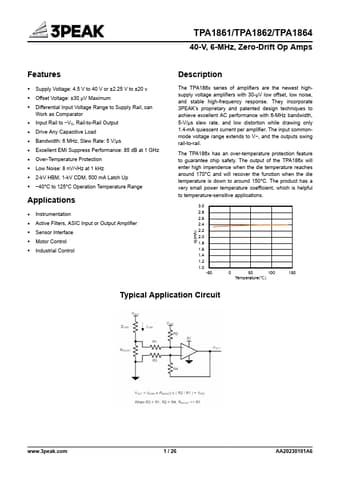

TPA1861
TPA1861 is Zero-Drift Op Amps manufactured by 3PEAK.
Features
- Supply Voltage: 4.5 V to 40 V or ±2.25 V to ±20 v
- Offset Voltage: ±30 μV Maximum
- Differential Input Voltage Range to Supply Rail, can
Work as parator
- Input Rail to
- VS, Rail-to-Rail Output
- Drive Any Capacitive Load
- Bandwidth: 6 MHz, Slew Rate: 5 V/μs
- Excellent EMI Suppress Performance: 85 d B at 1 GHz
- Over-Temperature Protection
- Low Noise: 8 n V/√Hz at 1 k Hz
- 2-k V HBM, 1-k V CDM, 500 m A Latch Up
- - 40°C to 125°C Operation Temperature Range
Applications
- Instrumentation
- Active Filters, ASIC Input or Output Amplifier
- Sensor Interface
- Motor Control
- Industrial Control
Description
The TPA186x series of amplifiers are the newest highsupply voltage amplifiers with 30-μV low offset, low noise, and stable high-frequency response. They incorporate 3PEAK’s proprietary and patented design techniques to achieve excellent AC performance with 6-MHz bandwidth, 5-V/μs slew rate, and low distortion while drawing only 1.4-m A quiescent current per amplifier. The input monmode voltage range extends to V- , and the outputs swing rail-to-rail.
The TPA186x has an over-temperature protection feature to guarantee chip safety. The output of the TPA186x will enter high impendence when the die temperature reaches around 170°C and will recover the function when the die temperature is down to around 150°C. The product has a very small power temperature coefficient, which is helpful to temperature-sensitive applications.
Iq(m A)
3.0 2.8 2.6 2.4 2.2 2.0 1.8 1.6 1.4 1.2 1.0
-50
Temperature(℃)
Typical Application Circuit
.3peak.
1 / 26
AA20230101A6
TPA1861/TPA1862/TPA1864
40-V, 6-MHz, Zero-Drift Op Amps
Table of Contents
Features
1 Applications...
