| Part Number | TA7805F |
| Manufacturer | Toshiba (https://www.toshiba.com/) Semiconductor |
| Title | Three Terminal Positive Voltage Regulator |
| Description | TA7805,057,06,07,08,09,10,12,15,18,20,24F TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA7805F,TA78057F,TA7806F,TA7807F,TA7808F,TA... |
| Features |
z Internal overcurrent protection. z Internal overheating protection. z Maximum output current of 1 A. z Packaged in New PW-Mold (Surface-mount type).
Pin Assignment
Marking side
1
3
2
IN G ND OUT (CAS E)
Marking
3
HSOP3-P-2.30D
Weight HSOP3-P...
|
| Datasheet |

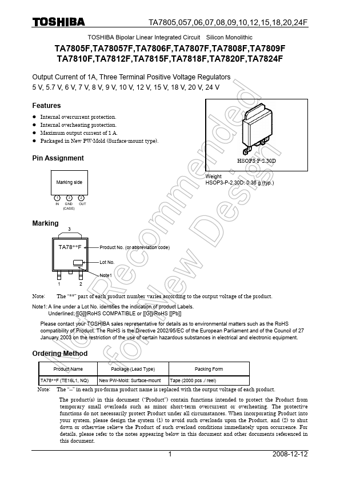

 TA7805F Datasheet
|
