| Part Number | DSP45-12A |
| Manufacturer | IXYS |
| Title | Standard Rectifier |
| Description | Standard Rectifier Phase leg Part number DSP45-12A 1 23 DSP45-12A VRRM I FAV VF = 2x 1200 V = 45 A = 1.23 V Backside: anode/cathode Features ... |
| Features |
/ Advantages:
● Planar passivated chips ● Very low leakage current ● Very low forward voltage drop ● Improved thermal behaviour Applications: ● Diode for main rectification ● For single and three phase bridge configurations Package: TO-247 ● Indust... |
| Datasheet |

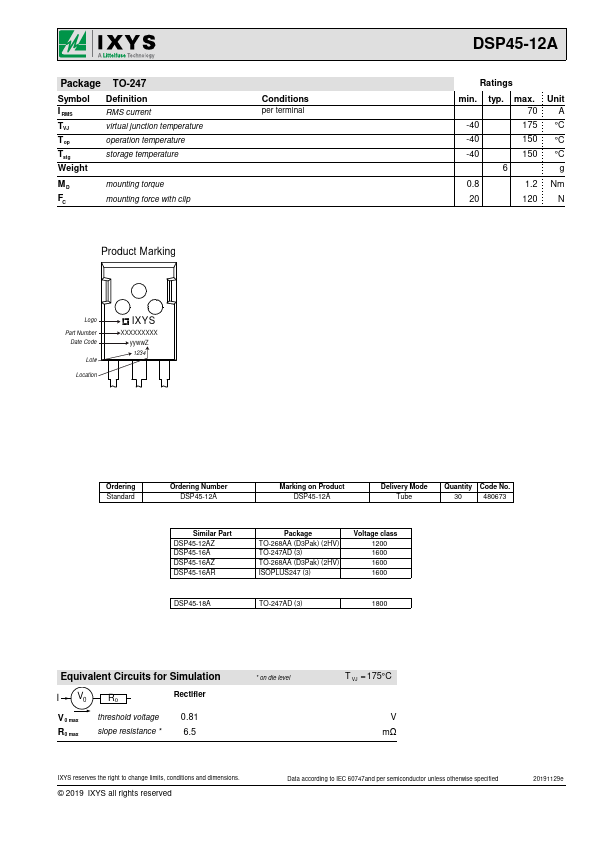

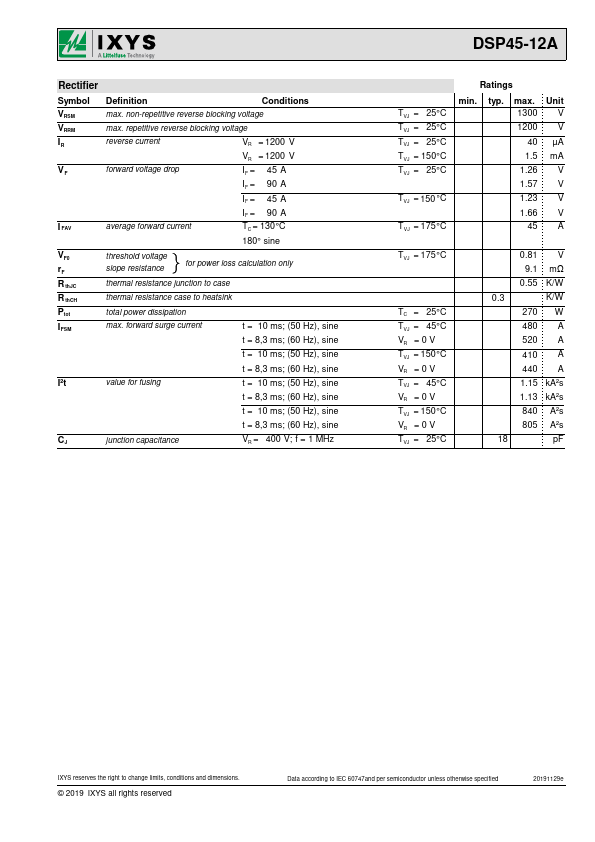

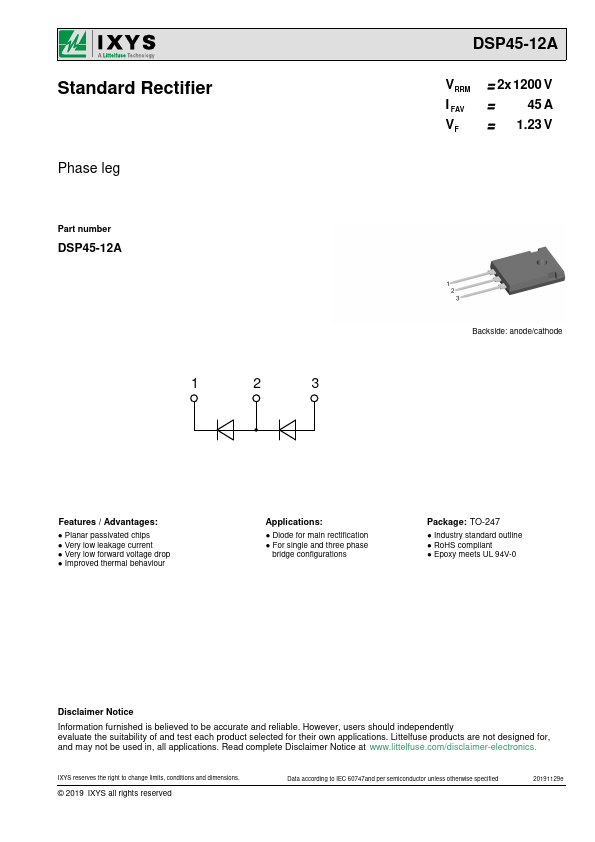

 DSP45-12A Datasheet
|
