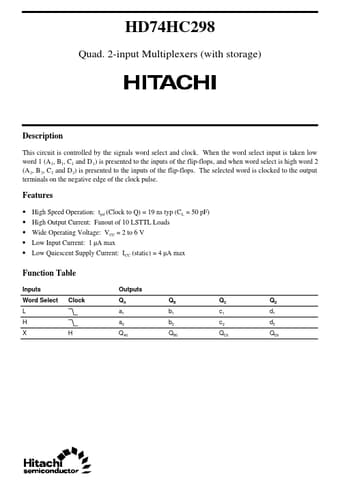

Part Number | 74HC298 |
Manufacturer | Hitachi |
Title | Quad. 2-input Multiplexers |
Description | This circuit is controlled by the signals word select and clock. When the word select input is taken low word 1 (A 1, B1, C1 and D 1) is presented... |
Features |
• • • • • High Speed Operation: tpd (Clock to Q) = 19 ns typ (CL = 50 pF) High Output Current: Fanout of 10 LSTTL Loads Wide Operating Voltage: VCC = 2 to 6 V Low Input Current: 1 µA max Low Quiescent Supply Current: ICC (static) = 4 µA max Function... |
Datasheet | 74HC298 Datasheet |
