SINGLE-CHIP 1 TO 16 MINUTES DURATION VOICE RECORD/PLAYBACK DEVICES WITH DIGITAL STORAGE CAPABILITY

No Preview Available !

I5102X pdf

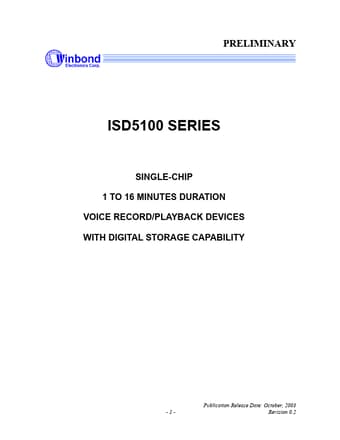

PRELIMINARY
ISD5100 SERIES
SINGLE-CHIP
1 TO 16 MINUTES DURATION
VOICE RECORD/PLAYBACK DEVICES
WITH DIGITAL STORAGE CAPABILITY
Publication Release Date: October, 2003
- 1 - Revision 0.2




Winbond
Winbond

I5102X Datasheet Preview

I5102X Datasheet

SINGLE-CHIP 1 TO 16 MINUTES DURATION VOICE RECORD/PLAYBACK DEVICES WITH DIGITAL STORAGE CAPABILITY

No Preview Available !

I5102X pdf
ISD5100 – SERIES
1. GENERAL DESCRIPTION
The ISD5100 ChipCorderSeries provide high quality, fully integrated, single-chip Record/Playback
solutions for 1- to 16-minute messaging applications that are ideal for use in cellular phones,
automotive communications, GPS/navigation systems and other portable products. The ISD5100
Series products are an enhancement of the ISD5000 architecture, providing: 1) the I2C serial port -
address, control and duration selection are accomplished through an I2C interface to minimize pin
count (ONLY two control lines required); 2) the capability of storing digital data, in addition to analog
data. This feature allows customers to store phone numbers, system configuration parameters and
message address locations for message management capability; 3) Various internal circuit blocks can
be individually powered-up or -down for power saving.
The ISD5100 Series include:
ISD5116 from 8 to 16 minutes
ISD5108 from 4 to 8 minutes
ISD5104 from 2 to 4 minutes
ISD5102 from 1 to 2 minutes
Analog functions and audio gating have also been integrated into the ISD5100 Series products to
allow easy interface with integrated digital cellular chip sets on the market. Audio paths have been
designed to enable full duplex conversation record, voice memo, answering machine (including
outgoing message playback) and call screening features. This product enables playback of messages
while the phone is in standby, AND both simplex and duplex playback of messages while on a phone
call.
Additional voice storage features for digital cellular phones include: 1) a personalized outgoing
message can be sent to the person by getting caller-ID information from the host chipset, 2) a private
call announce while on call can be heard from the host by giving caller-ID on call waiting information
from the host chipset.
Logic Interface Options of 2.0V and 3.0V are supported by the ISD5100 Series to accommodate
portable communication products (2.0- and 3.0-volt required).
Like other ChipCorder® products, the ISD5100 Series integrate the sampling clock, anti-aliasing and
smoothing filters, and the multi-level storage array on a single-chip. For enhanced voice features, the
ISD5100 Series eliminate external circuitry by integrating automatic gain control (AGC), a power
amplifier/speaker driver, volume control, summing amplifiers, analog switches, and a car kit interface.
Input level adjustable amplifiers are also included, providing a flexible interface for multiple
applications.
Recordings are stored into on-chip nonvolatile memory cells, providing zero-power message storage.
This unique, single-chip solution is made possible through Winbond’s patented multilevel storage
technology. Voice and audio signals are stored directly into solid-state memory in their natural,
uncompressed form, providing superior quality on voice and music reproduction.
-2-




Winbond
Winbond

I5102X Datasheet Preview

I5102X Datasheet

SINGLE-CHIP 1 TO 16 MINUTES DURATION VOICE RECORD/PLAYBACK DEVICES WITH DIGITAL STORAGE CAPABILITY

No Preview Available !

I5102X pdf
ISD5100 – SERIES
2. FEATURES
Fully-Integrated Solution
Single-chip voice record/playback solution
Dual storage of digital and analog data
Durations
8 to 16-minute (ISD5116)
4 to 8-minute (ISD5108)
2 to 4-minute (ISD5104)
1 to 2-minute (ISD5102)
Low Power Consumption
+2.7 to +3.3V (VCC) Supply Voltage
Supports 2.0V and 3.0V interface logic
Operating Current:
ICC Play = 15 mA (typical)
ICC Rec = 30 mA (typical)
ICC Feedthrough = 12 mA (typical)
Standby Current:
ISB = 1µA (typical)
Most stages can be individually powered down to minimize power consumption
Enhanced Voice Features
One or two-way conversation record
One or two-way message playback
Voice memo record and playback
Private call screening
In-terminal answering machine
Personalized outgoing message
Private call announce while on call
Digital Memory Features
Up to 4 Mb available (ISD5116)
Up to 2 Mb available (ISD5108)
Up to 1 Mb available (ISD5104)
Up to 512Kb available (ISD5102)
Storage of phone numbers, system configuration parameters and message address table in cellular
application
Easy-to-use and Control
No compression algorithm development required
User-controllable sampling rates
Programmable analog interface
Standard & Fast mode I2C serial interface (100kHz – 400 kHz)
Fully addressable for multiple messages
High Quality Solution
High quality voice and music reproduction
Winbond’s standard 100-year message retention (typical)
100K record cycles (typical) for analog data
10K record cycles (typical) for digital data
Options
Available in die form, TSOP and SOIC and PDIP (ISD5116 Only)
Temperature: Commercial – Packaged (0 to +70°C) & die (0 to +50°C); Industrial (-40 to +85°C)
Publication Release Date: October, 2003
- 3 - Revision 0.2
