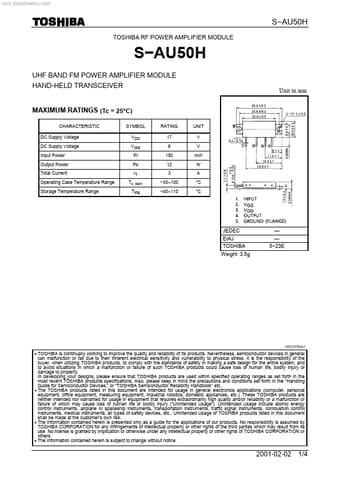

TOSHIBA RF POWER AMPLIFIER MODULE
SAU50H
UHF BAND FM POWER AMPLIFIER MODULE
HAND-HELD TRANSCEIVER
MAXIMUM RATINGS (Tc = 25°C)
CHARACTERISTIC
DC Supply Voltage
DC Supply Voltage
Input Power
Output Power
Total Current
Operating Case Temperature Range
Storage Temperature Range
SYMBOL
VDD
VGG
Pi
Po
IT
Tc (opr)
Tstg
RATING
17
6
150
12
3
30~100
40~110
UNIT
V
V
mW
W
A
°C
°C
SAU50H
Unit in mm
JEDEC
EIAJ
TOSHIBA
Weight: 3.5g
523E
000707EAA1
· TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor devices in general
can malfunction or fail due to their inherent electrical sensitivity and vulnerability to physical stress. It is the responsibility of the
buyer, when utilizing TOSHIBA products, to comply with the standards of safety in making a safe design for the entire system, and
to avoid situations in which a malfunction or failure of such TOSHIBA products could cause loss of human life, bodily injury or
damage to property.
In developing your designs, please ensure that TOSHIBA products are used within specified operating ranges as set forth in the
most recent TOSHIBA products specifications. Also, please keep in mind the precautions and conditions set forth in the “Handling
Guide for Semiconductor Devices,” or “TOSHIBA Semiconductor Reliability Handbook” etc..
· The TOSHIBA products listed in this document are intended for usage in general electronics applications (computer, personal
equipment, office equipment, measuring equipment, industrial robotics, domestic appliances, etc.). These TOSHIBA products are
neither intended nor warranted for usage in equipment that requires extraordinarily high quality and/or reliability or a malfunction or
failure of which may cause loss of human life or bodily injury (“Unintended Usage”). Unintended Usage include atomic energy
control instruments, airplane or spaceship instruments, transportation instruments, traffic signal instruments, combustion control
instruments, medical instruments, all types of safety devices, etc.. Unintended Usage of TOSHIBA products listed in this document
shall be made at the customer’s own risk.
· The information contained herein is presented only as a guide for the applications of our products. No responsibility is assumed by
TOSHIBA CORPORATION for any infringements of intellectual property or other rights of the third parties which may result from its
use. No license is granted by implication or otherwise under any intellectual property or other rights of TOSHIBA CORPORATION or
others.
· The information contained herein is subject to change without notice.
2001-02-02 1/4


Toshiba Electronic Components Datasheet

S-AU50H Datasheet

UHF BAND FM POWER AMPLIFIER MODULE HAND-HELD TRANSCEIVER

No Preview Available !

S-AU50H pdf
ELECTRICAL CHARACTERISTICS (Tc = 25°C)
SAU50H
CHARACTERISTIC
Frequency Range
Output Power
Power Gain
Total Efficiency
Input VSWR
Harmonics
Load Mismatch
Stability
SYMBOL
TEST CONDITION
frange
Po
Gp
ηT
VSWRin
HRM
VDD = 9.6V, VGG = 4V
Pi = 50mW, ZG = ZL = 50
VDD = 15V, Pi = 50mW
Po = 7W (VGG = adjust)
VSWR LOAD 20 : 1 ALL PHASE
VDD = 7.5~11.5V, VGG = 0~4V
Pi = 50mW
VSWR LOAD 3: 1 ALL PHASE
MIN. TYP. MAX. UNIT
470 — 520 MHz
6.5 — — W
21.1 — — dB
40 — — %
— — 4.5 —
— — 30 dBc
No Degradation
All spurious output than
60dB below desired
signal
CAUTION
· This product has intersetting cap. Please pay attention for exceeding stress and foreign matter in your application.
And not to take away the cap.
· Do not intermingle with normal industrial or domestic waste.
· This product is electrostatic sensitivity, please handle with caution.
2001-02-02 2/4
