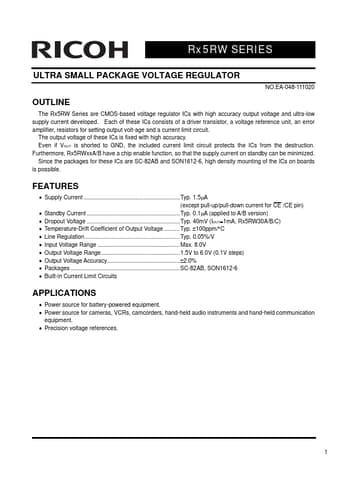

Rx5RW SERIES
ULTRA SMALL PACKAGE VOLTAGE REGULATOR
NO.EA-048-111020
OUTLINE
The Rx5RW Series are CMOS-based voltage regulator ICs with high accuracy output voltage and ultra-low
supply current developed. Each of these ICs consists of a driver transistor, a voltage reference unit, an error
amplifier, resistors for setting output volt-age and a current limit circuit.
The output voltage of these ICs is fixed with high accuracy.
Even if VOUT is shorted to GND, the included current limit circuit protects the ICs from the destruction.
Furthermore, Rx5RWxxA/B have a chip enable function, so that the supply current on standby can be minimized.
Since the packages for these ICs are SC-82AB and SON1612-6, high density mounting of the ICs on boards
is possible.
FEATURES
Supply Current ............................................................. Typ. 1.5μA
(except pull-up/pull-down current for CE /CE pin)
Standby Current ........................................................... Typ. 0.1μA (applied to A/B version)
Dropout Voltage ........................................................... Typ. 40mV (IOUT=1mA, Rx5RW30A/B/C)
Temperature-Drift Coefficient of Output Voltage .......... Typ. ±100ppm/°C
Line Regulation ............................................................ Typ. 0.05%/V
Input Voltage Range .................................................... Max. 8.0V
Output Voltage Range.................................................. 1.5V to 6.0V (0.1V steps)
Output Voltage Accuracy..............................................±2.0%
Packages .....................................................................SC-82AB, SON1612-6
Built-in Current Limit Circuits
APPLICATIONS
Power source for battery-powered equipment.
Power source for cameras, VCRs, camcorders, hand-held audio instruments and hand-held communication
equipment.
Precision voltage references.
1



RICOH
RICOH

RD5RW36 Datasheet Preview

RD5RW36 Datasheet

ULTRA SMALL PACKAGE VOLTAGE REGULATOR

No Preview Available !

RD5RW36 pdf
Rx5RW
BLOCK DIAGRAMS
Rx5RWxxA
VDD
+
-
Vref Current Limit
CE
Rx5RWxxC
VDD
+
-
Vref Current Limit
NC
VOUT VDD
GND CE
VOUT
GND
Rx5RWxxB
+
-
Vref Current Limit
VOUT
GND
SELECTION GUIDE
The output voltage, chip enable polarity, and package, etc. for the ICs can be selected at the user’s request.
Product Name
Package
Quantity per Reel
Pb Free
Halogen Free
RD5RWxxA-TR-FE
SON1612-6
4,000 pcs
Yes
Yes
RQ5RWxxA-TR-FE
SC-82AB
3,000 pcs
Yes
xx: The output voltage can be designated in the range from 1.5V(15) to 6.0V(60) in 0.1V steps.
Yes
: CE pin polarity are options as follows.
(A) "L" active
(B) "H" active
(C) without chip enable
2
