Military Fasteners
Military Fasteners

NAS6404-4 Datasheet Preview

NAS6404-4 Datasheet

BOLT

No Preview Available !

NAS6404-4 pdf

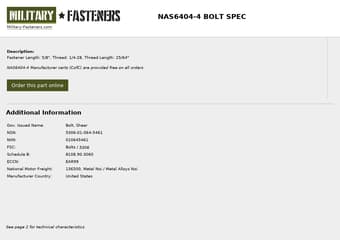

Military-Fasteners.com
NAS6404-4 BOLT SPEC
Description:
Fastener Length: 5/8", Thread: 1/4-28, Thread Length: 25/64"
NAS6404-4 Manufacturer certs (CofC) are provided free on all orders
Order this part online
Additional Information
Gov. Issued Name:
NSN:
NIIN:
FSC:
Schedule B:
ECCN:
National Motor Freight:
Manufacturer Country:
Bolt, Shear
5306-01-064-5461
010645461
Bolts / 5306
8108.90.3060
EAR99
136500, Metal Noi / Metal Alloys Noi
United States
See page 2 for technical characteristics



Military Fasteners
Military Fasteners

NAS6404-4 Datasheet Preview

NAS6404-4 Datasheet

BOLT

No Preview Available !

NAS6404-4 pdf
NAS6404-4 Specifications
Fastener Length:
Grip Length:
Grip Diameter:
Head Height:
Head Style:
Material:
Minimum Tensile Strength:
Nominal Thread Diameter:
Specification/standard Data:
Width Between Flats:
Surface Treatment:
Thread Class:
Thread Direction:
Thread Length:
Thread Quantity Per Inch:
Thread Series Designator:
0.605 Inches Minimum And 0.635 Inches Maximum
0.240 Inches Minimum And 0.260 Inches Maximum
0.2485 Inches Minimum And 0.2495 Inches Maximum
0.125 Inches Minimum And 0.140 Inches Maximum
Dished Hexagon
Titanium Alloy Overall
160000 Pounds Per Square Inch
0.250 Inches
80205-nas6404 Professional/industrial Association Standard
0.429 Inches Minimum And 0.439 Inches Maximum
Cadmium Overall And Chromate Overall
3a
Right-hand
0.345 Inches Minimum And 0.395 Inches Maximum
28
Unjf
How to Order
Order this bolt from our inventory online by visiting https://military-fasteners.com/bolts/shear-bolts/NAS6404-4 and selecting the quantity you want then click "add
to cart". Once items are in your cart you can check out here to complete your order.
Provided by Military-Fasteners.com


Part Number NAS6404-4
Description BOLT
Maker Military Fasteners
Total Page 2 Pages
