SOCKET HEAD CAP SCREW

No Preview Available !

NAS1635-04LR5 pdf
Military-Fasteners.com

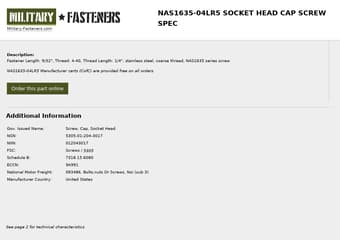

NAS1635-04LR5 SOCKET HEAD CAP SCREW
SPEC
Description:
Fastener Length: 9/32", Thread: 4-40, Thread Length: 1/4", stainless steel, coarse thread, NAS1635 series screw
NAS1635-04LR5 Manufacturer certs (CofC) are provided free on all orders
Order this part online
Additional Information
Gov. Issued Name:
NSN:
NIIN:
FSC:
Schedule B:
ECCN:
National Motor Freight:
Manufacturer Country:
Screw, Cap, Socket Head
5305-01-204-3017
012043017
Screws / 5305
7318.15.6080
9A991
093486, Bolts,nuts Or Screws, Noi (sub 3)
United States
See page 2 for technical characteristics



Military Fasteners
Military Fasteners

NAS1635-04LR5 Datasheet Preview

NAS1635-04LR5 Datasheet

SOCKET HEAD CAP SCREW

No Preview Available !

NAS1635-04LR5 pdf
NAS1635-04LR5 Specifications
Fastener Length:
Head Diameter:
Head Height:
Head Style:
Material:
Nominal Thread Diameter:
Internal Drive Style:
Locking Feature:
Specification/standard Data:
Surface Treatment Document And Classification:
Surface Treatment:
Thread Length:
Thread Class:
Thread Direction:
Thread Quantity Per Inch:
Thread Series Designator:
0.250 Inches Minimum And 0.282 Inches Maximum
0.205 Inches Minimum And 0.219 Inches Maximum
0.070 Inches Minimum And 0.080 Inches Maximum
Pan
Steel Corrosion Resisting Overall
0.112 Inches
Cross Recess Type 1
Patch Overall
80205-nas1635 Professional/industrial Association Specification
-1l-c-13924 National Spec Single Treatment Response Overall
Passivate Overall
0.220 Inches Minimum And 0.250 Inches Maximum
2a
Right-hand
40
Unc
How to Order
Order this socket head cap screw from our inventory online by visiting https://military-fasteners.com/screws/socket-head-cap-screw/NAS1635-04LR5 and selecting
the quantity you want then click "add to cart". Once items are in your cart you can check outhere to complete your order.
Provided by Military-Fasteners.com


Part Number NAS1635-04LR5
Description SOCKET HEAD CAP SCREW
Maker Military Fasteners
Total Page 2 Pages
