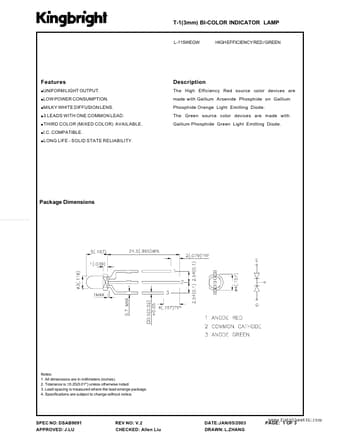

T-1(3mm) BI-COLOR INDICATOR LAMP
L-115WEGW
HIGH EFFICIENCY RED / GREEN
Features
!UNIFORM LIGHT OUTPUT.
!LOW POWER CONSUMPTION.
!MILKY WHITE DIFFUSION LENS.
!3 LEADS WITH ONE COMMON LEAD.
!THIRD COLOR (MIXED COLOR) AVAILABLE.
!I.C. COMPATIBLE.
!LONG LIFE - SOLID STATE RELIABILITY.
Description
The High Efficiency Red source color devices are
made with Gallium Arsenide Phosphide on Gallium
Phosphide Orange Light Emitting Diode.
The Green source color devices are made with
Gallium Phosphide Green Light Emitting Diode.
Package Dimensions
www.DataSheet4U.com
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO: DSAB9091
APPROVED: J.LU
REV NO: V.2
CHECKED: Allen Liu
DATE:JAN/05/2003
DRAWN: L.ZHANG
PAGE: 1 OF 3



Kingbright Corporation
Kingbright Corporation

L-115WEGW Datasheet Preview

L-115WEGW Datasheet

BI-COLOR INDICATOR LAMP

No Preview Available !

L-115WEGW pdf
Selection Guide
Part No.
Dice
Lens Type
L-115WEGW
HIGH EFFICIENCY RED (GaAsP/GaP)
GREEN (GaP)
WHITE DIFFUSED
Note:
1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Iv (mcd)
@ 20 mA
Min. Typ.
10 40
10 35
View in g
Angle
2θ1/2
60°
Electrical / Optical Characteristics at T)=25°C
www.DataSheet4U.com
Symbol
λpeak
λD
∆λ1/2
C
VF
IR
Parameter
Device
Peak Wavelength
High Efficiency Red
Green
Dominate Wavelength
High Efficiency Red
Green
Spectral Line
Half-width
High Efficiency Red
Green
Capacitance
High Efficiency Red
Green
Forward Voltage
High Efficiency Red
Green
Reverse Current All
Typ.
627
565
625
568
45
30
15
15
2.0
2.2
10
Max.
2.5
2.5
Units
nm
nm
nm
pF
V
uA
Test Conditions
I F =20mA
I F =20mA
I F =20mA
VF=0V;f=1MHz
I F =20mA
V R=5V
Absolute Maximum Ratings at T)=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
High Efficiency Red
105
30
160
5
Green
105
25
140
5
-40°C To +85°C
260°C For 5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAB9091
APPROVED: J.LU
REV NO: V.2
CHECKED: Allen Liu
DATE:JAN/05/2003
DRAWN: L.ZHANG
PAGE: 2 OF 3
