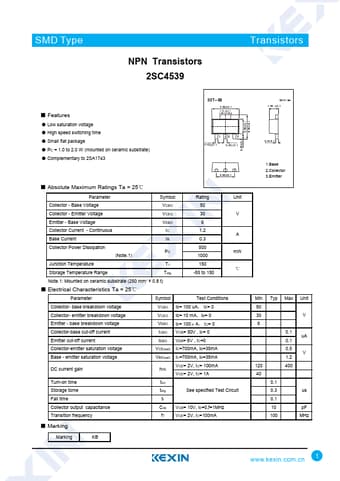

SMD Type
NPN Transistors
2SC4539
Transistors
Features
Low saturation voltage
High speed switching time
Small flat package
PC = 1.0 to 2.0 W (mounted on ceramic substrate)
Complementary to 2SA1743
1.70 0.1
0.42 0.1
0.46 0.1
Absolute Maximum Ratings Ta = 25
Parameter
Symbol
Collector - Base Voltage
VCBO
Collector - Emitter Voltage
VCEO
Emitter - Base Voltage
VEBO
Collector Current - Continuous
IC
Base Current
IB
Collector Power Dissipation
(Note.1)
PC
Junction Temperature
TJ
Storage Temperature Range
Tstg
Note.1: Mounted on ceramic substrate (250 mm2 × 0.8 t)
Electrical Characteristics Ta = 25
Rating
50
30
6
1.2
0.3
500
1000
150
-55 to 150
Unit
V
A
mW
Parameter
Collector- base breakdown voltage
Collector- emitter breakdown voltage
Emitter - base breakdown voltage
Collector-base cut-off current
Emitter cut-off current
Collector-emitter saturation voltage
Base - emitter saturation voltage
DC current gain
Turn-on time
Storage tome
Fall time
Collector output capacitance
Transition frequency
Symbol
Test Conditions
VCBO Ic= 100 uAIE= 0
VCEO Ic= 10 mAIB= 0
VEBO IE= 100μAIC= 0
ICBO VCB= 50V , IE= 0
IEBO VEB= 6V , IC=0
VCE(sat) IC=700mA, IB=35mA
VBE(sat) IC=700mA, IB=35mA
VCE= 2V, IC= 100mA
hFE
VCE= 2V, IC= 1A
ton
tstg See specified Test Circuit
tr
Cob VCB= 10V, IE=0,f=1MHz
fT VCE= 2V, IC=100mA
Marking
Marking
KB
1.Base
2.Collector
3.Emitter
Min Typ Max Unit
50
30 V
6
0.1
uA
0.1
0.5
V
1.2
120 400
40
0.1
0.3 us
0.1
10 pF
100 MHz
