Mini Spring Air Core Inductors

No Preview Available !

B09TJ pdf

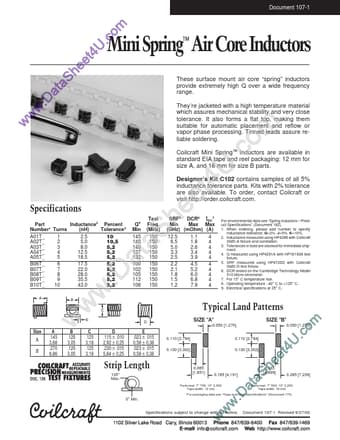

Document 107-1
heet4U.Mcomini SpringAir Core InductorsThese surface mount air core “spring” inductors
taS provide extremely high Q over a wide frequency
range.
.Da They’re jacketed with a high temperature material
w which assures mechanical stability and very close
w tolerance. It also forms a flat top, making them
w suitable for automatic placement and reflow or
vapor phase processing. Tinned leads assure re-
mliable soldering.
oCoilcraft Mini Springinductors are available in
.cstandard EIA tape and reel packaging: 12 mm for
size A, and 16 mm for size B parts.
UDesigner’s Kit C102 contains samples of all 5%
t4inductance tolerance parts. Kits with 2% tolerance
are also available. To order, contact Coilcraft or
visit http://order.coilcraft.com.
Specifications heePart Inductance2 Percent
Number1 Turns (nH) Tolerance3
SA01T_
A02T_
A03T_
taA04T_
A05T_
1
2
3
4
5
2.5
5.0
8.0
12.5
18.5
10
10,5
5,2
5,2
5,2
aB06T_
B07T_
B08T_
.DB09T_
B10T_
6
7
8
9
10
17.5
22.0
28.0
35.5
43.0
5,2
5,2
5,2
5,2
5,2
2Q4
Min
145
140
140
137
132
100
102
105
112
106
Test
Freq.
(MHz)
150
150
150
150
150
150
150
150
150
150
3SRF5 DCR6 IDC7
Min Max Max
(GHz) (mOhm) (A)
12.5 1.1 4
6.5 1.8 4
5.0 2.6 4
3.3 3.4 4
2.5 3.9 4
2.2 4.5 4
2.1 5.2 4
1.8 6.0 4
1.5 6.8 4
1.2 7.9 4
For environmental data see “Spring Inductors—Prod-
uct Specifications” (Document 182).
1. When ordering, please add number to specify
inductance tolerance: G=2%, J=5%, K=10%.
2. Inductance measured using HP4286 with Coilcraft
SMD-A fixture and correlation.
3. Tolerances in bold are stocked for immediate ship-
ment.
4. Q measured using HP4291A with HP16193A test
fixture.
5. SRF measured using HP8720D with Coilcraft
SMD-D test fixture.
6. DCR tested on the Cambridge Technology Model
510 Micro-ohmmeter.
7. For 15° C temperature rise.
8. Operating temperature 40° C to +125° C.
9. Electrical specifications at 25° C.
wA B
Typical Land PatternsC
wE D
w omSize A B C
D
E
U.cA
.145
3,68
.120
3,05
.125 .115 ± .010 .023 ± .015
3,18 2,92 ± 0,25 0,58 ± 0,38
t4B
.270
6,86
.120
3,05
.125 .230 ± .015 .023 ± .015
3,18 5,84 ± 0,25 0,58 ± 0,38
SIZE "A"
0.050 [1,270]
SIZE "B"
0.050 [1,270]
0.110 [2,794]
0.130 [3,302]
0.110 [2,794]
0.130 [3,302]
Strip Length Shee135°
Max.
.Data0° Min.
0.065
[1,651]
0.165 [4,191]
0.185
[4,699]
0.285 [7,239]
Parts/reel: 7700; 132,500
Tape width: 12 mm
Parts/reel: 7500; 132,200
Tape width: 16 mm
For packaging data see “Tape and Reel Specifications” (Document 173)
wwwSpecifications subject to change without notice. Document 107-1 Revised 9/27/00



Coilcraft
Coilcraft

B09TJ Datasheet Preview

B09TJ Datasheet

Mini Spring Air Core Inductors

No Preview Available !

B09TJ pdf
Document 107-2
Mini SpringAir Core Inductors
Typical L vs Frequency
S-Parameter files
ON OUR WEB SITE OR CD
PSPICE models
SEE DOC 158
24
22
20
A05T
18
16
14
A04T
12
10
A03T
8
6
4
2
nH
A02T
A01T
100 200
F, MHz
220
210
200
190
180
170
160
150
140
130
120
Q 110
100
F, MHz
200
55
50
45
40
35
30
25
20
15
10
5
400 600 800 1000
nH
100
F, MHz
Typical Q vs Frequency
A01T
A02T
A03T
A04T
A05T
400 600 800 1000
135
130
125
120
115
110
105
100
95
90
85
Q 80
100
F, MHz
B10T
B09T
B08T
B07T
B06T
200 400 600 800 1000
B06T
B07T
B08T
B09T
B10T
200 400 600 800 1000
Specifications subject to change without notice. Document 107-2 Revised 8/26/99
