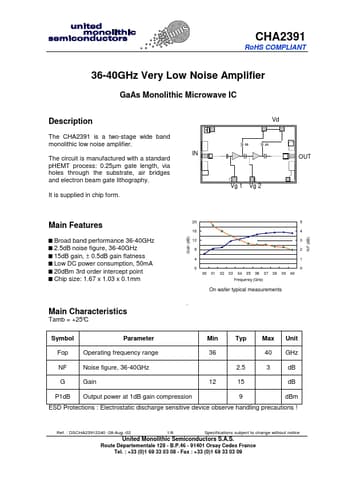

Part Number | CHA2391 |
Manufacturer | United Monolithic Semiconductors |
Title | 36-40GHz Very Low Noise Amplifier |
Description | The CHA2391 is a two-stage wide band monolithic low noise amplifier. The circuit is manufactured with a standard pHEMT process: 0.25µm gate length... |
Features |
■ Broad band performance 36-40GHz ■ 2.5dB noise figure, 36-40GHz ■ 15dB gain, ± 0.5dB gain flatness ■ Low DC power consumption, 50mA ■ 20dBm 3rd order intercept point ■ Chip size: 1.67 x 1.03 x 0.1mm Main Characteristics Tamb = +25°C 20 5 16 4 12 3 ... |
Datasheet | CHA2391 Datasheet |
