| Part Number | MDU1518 |
| Manufacturer | MagnaChip |
| Title | N-Channel Trench MOSFET |
| Description | The MDU1518 uses advanced MagnaChip’s MOSFET Technology, which provides high performance in on-state resistance, fast switching performance and ex... |
| Features |
VDS = 30V
ID = 94.5A
@VGS = 10V
RDS(ON)
< 4.2 mΩ @VGS = 10V
< 6.2 mΩ @VGS = 4.5V
100% UIL Tested
100% Rg Tested
DD DD
DD DD
D
S SSG
GS SS
PowerDFN56
Absolute Maximum Ratings (Ta = 25oC)
Drain-Source Voltage Gate-Source Voltage
Charac...
|
| Datasheet |

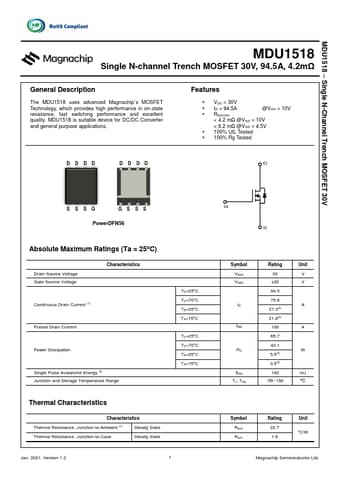

 MDU1518 Datasheet
|
