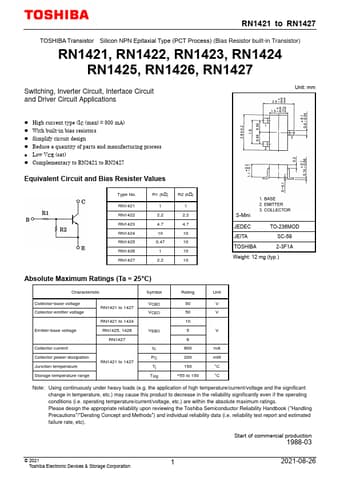

| Description | RN1421 to RN1427 TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) (Bias Resistor built-in Transistor) RN1421, RN1422, RN1423, RN1424 RN1425, RN1426, RN1427 Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications Unit: mm High current type (IC (max) = 800 mA) With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturi... |
| Features |
RN1421 to 1427
VCBO VCEO
VEBO
IC PC Tj Tstg
50
V
50
V
10
5
V
6
800
mA
200
mW
150
°C
−55 to 150
°C
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the op...
|
| Datasheet |
 RN1424 Datasheet - 1.02MB |
