| Part Number | MK-756 |
| Manufacturer | Synergy |
| Title | COAXIAL CONNECTOR MODELS |

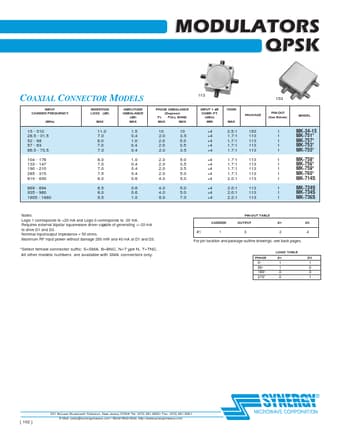

| Description | MODULATORS QPSK COAXIAL CONNECTOR MODELS INPUT CARRIER FREQUENCY (MHz) INSERTION LOSS (dB) MAX AMPLITUDE UNBALANCE (dB) MAX PHASE UNBALANCE (Degre... |
| Features |
ar squarewave driver cap able of generating +/-20 mA to drive D1 and D3. Nominal input/output impedance = 50 ohms. Maximum RF input power without damage 200 mW and 40 mA at D1 and D3.
PIN-OUT TABLE CARRIER OUTPUT D1 D3
#1
1
3
2
4
For pin locat...
|
| Datasheet |
 MK-756 Datasheet
|
